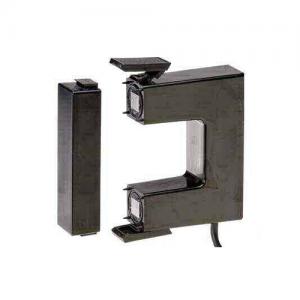

Split-core Current Transformer - 608 Series

Application: ANSI (Revenue Grade)
Split Core: true
Mount: wire
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Weight: 7.5 lbs

  • Model Number: 608 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Split-core Current Transformer
Mouse over image to zoom
Share:

Product Specification

The 608 Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.

608 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC

608 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
  Models 608-501 – 608-202: 1.33 at 30°C amb., 1.00 at 55°C amb
  Models 608-252 – 608-322: 1.00 at 30°C amb., 0.70 at 55°C amb
Weight: 7.5 lbs

608 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment


608 Series Split-core Current Transformer PART NUMBERS

Part Number
Current Ratio
Burden VA
ANSI Metering Class at 60Hz
608-501
500:5A
6.0 1%
608-601
600:5A
8.0 1%
608-801
800:5A
12.0 1%
608-102
1000:5A
13.0 1%
608-122
1200:5A
16.0 1%
608-152
1500:5A
25.0 1%
608-162
1600:5A
27.0 1%
608-202
2000:5A
33.0 1%
608-252
2000:5A
42.0
1%
608-302
3000:5A
50.0
1%
608-322
3200:5A
54.0
1%
