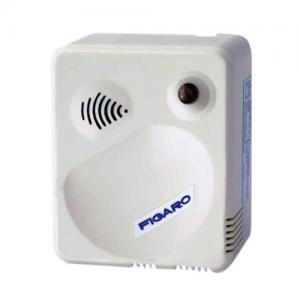

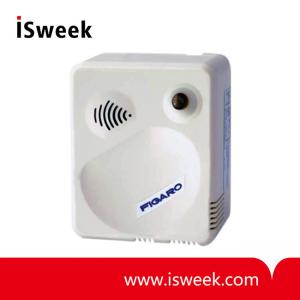

Stand-combustible Gas Detector - BJ-62-1A
? Detection of gas: liquefied natural gas
? Detection method?: FIGARO semiconductor gas sensor?
? Alarm concentration?: 25% of the lower flammable limit or less?
? Power supply: AC220V ± 15%
? Power consumption: 3W or less
? Temperature: -10 ~ 55°C
- Model Number: BJ-62-1A
- Data Sheet:
- Quantity:
- - +
Product Specification
Stand-combustible Gas Detector
BJ-62-1A Combustible Gas Detector Detection of gas:
liquefied natural gas
BJ-62-1A Combustible Gas Detector Output:
? DC12V pulse output can be driven shut-off valve
? No output
BJ-62-1A Combustible Gas Detector Technical Parameters
Detection method
FIGARO semiconductor gas sensor
Alarm concentration
25% of the lower flammable limit or less
Power supply
AC220V ± 15%
Power consumption
3W or less
Alarm
Red light, intermittent buzzer sounds, the alarm sound over 70dB
Fault alarm
(When the gas sensor failure) yellow light, buzzer sounding
Output delay
20 seconds after the alarm output (can be changed according to user requirements)
Temperature
-10 ~ 55°C
Size & Weight
90mm x 75mm x 55mm, about 300g
Subsidiary products
Install siding a screw 2, up tube 2
Implementation of the standards: GB15322.2
