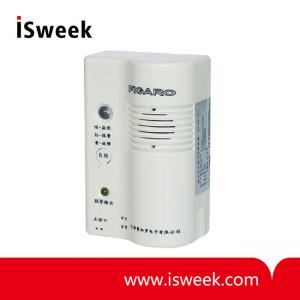

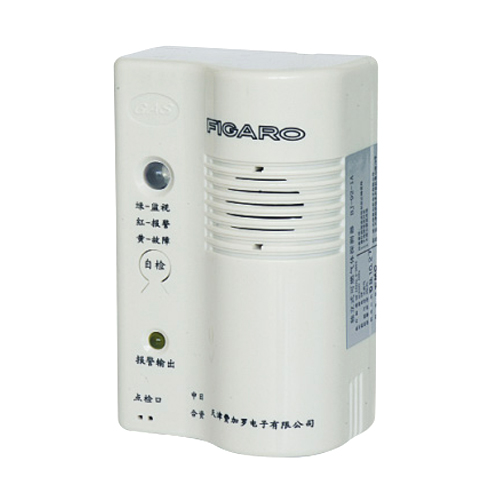

Stand-combustible Gas Detector - BJ-92-1A-11
? Detection of gas: natural gas
? Detection method: FIGARO semiconductor gas sensor
? Alarm concentration:? Gas explosion limit below 25%?
? Power supply: AC220V ± 15%
? Power consumption: 3W or less
? Temperature: -10 ~ 55°C?
- Model Number: BJ-92-1A-11
- Quantity:
- - +
Product Specification
Stand-combustible Gas Detector
BJ-92-1A-11 Combustible Gas Detector Detection of gas:
1A: natural gas
BJ-92-1A-11 Combustible Gas Detector Output:
? DC12V pulse output
? AC220V contact output
? AC220V pulse output
? AC220V Output
? Relay contact (normally open output), with the controller
BJ-92-1A-11 Combustible Gas Detector Technical Parameters
Connection (customer demand)
Detection method
FIGARO semiconductor gas sensor
Alarm concentration
Gas explosion limit below 25%
Power supply
AC220V ± 15%
Power consumption
3W or less
Alarm
red light, intermittent buzzer sounds, the alarm sound over 70dB.
When the fault alarm
(gas sensing component failure) yellow light, buzzer sounding.
When with relay contact output, output contact action (Note: limited EMR models)
Output delay
20 seconds after the alarm output
(which can be changed according to user requirements)
Temperature
-10 ~ 55°C
Size & Weight
110mm x 68mm x 45mm, about 300g
Accessories
Install a hanging plate, screw 2, up tube 2, check a gas (coal gas None)
Implementation of the standards
GB15322.2 / GB15322.5
