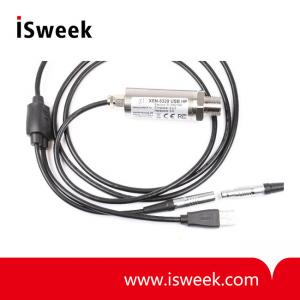

Thermal Conductivity Gas Sensor - XEN-5320-HP-USB

? Long-term stable analysis of gases in binary and quasi-binary mixtures
? Fast response and data update rate
? High sensitivity and resolution
? Long lifetime and low maintenance
? Flow effects compensating design
? Temperature and humidity corrected output

Model Number: XEN-5320-HP-USB
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The XEN-5320 is an intelligent gas sensor with a wide application in industry where it is desirable to analyse binary gas mixtures. The sensor is based on the measurement of the thermal conductivity of the ambient gas, using the proven thermal conductivity sensor XEN-3880. Applications include hydrogen and helium gas experimentation, detection of gas dispersion rates in jets and plumes and binary gas composition measurement.

Features

? Long-term stable analysis of gases in binary and quasi-binary mixtures

? Fast response and data update rate

? High sensitivity and resolution

? Long lifetime and low maintenance

? Flow effects compensating design

? Temperature and humidity corrected output

? Allows user zero and gain calibration

? User configurable output calibration curves

? LabView read-out and programming software

? Read-out via USB, CAN or Analog output

? RoHS compliant

? CE and FCC certified

Applications

Monitoring and leak detection of hydrogen, helium, nitrogen and methane gas mixtures in medical, R&D and industrial environments.

Technical Specification

*Preliminary Specifications at 23℃, 101 kPa, 50 %RH

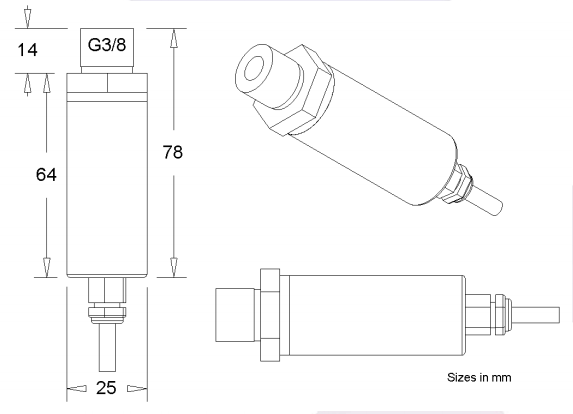

Mechanical
enclosure	Stainless steel
weight	200 g (with cable)
mounting	G3/8 BSPP
Environmental
temperature range	-40 to + 85℃
humidity range	0 to 95 %RH (non-condensing)
pressure range	500-10.000 mbar
Electrical
supply Voltage	5V
power consumption	100 mW
maximum cable length	3m
