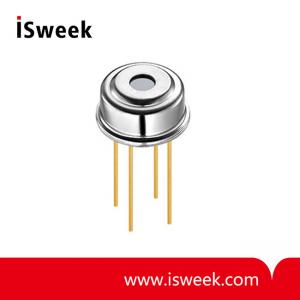

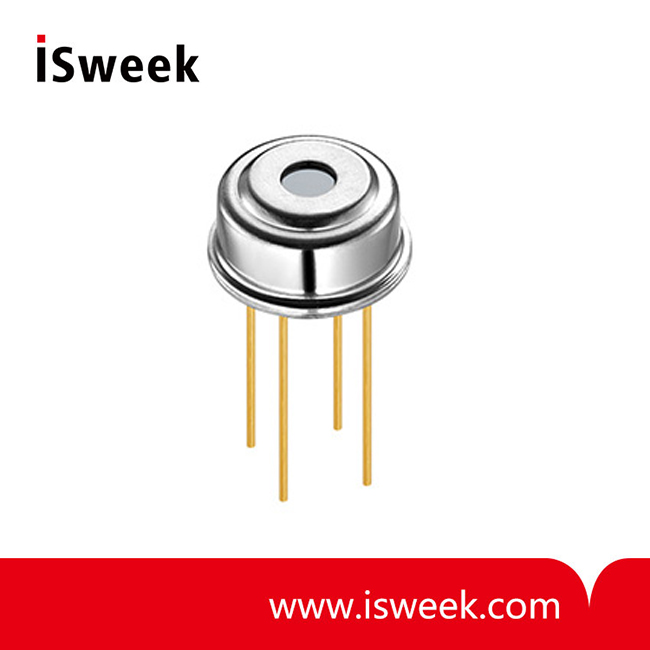

Thermopile Temperature Sensor - MTP10-A6F8
? MEMS Thermopile Element
? TO-39 Package
? High Sensitivity
? 8~14um BP Filter
? High Accuracy NTC
- Model Number: MTP10-A6F8
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Features:
? MEMS Thermopile Element
? TO-39 Package
? High Sensitivity
? 8~14um BP Filter
? High Accuracy NTC
Applications:
? Non-contact Temperature Measurements
? Continuous Temperature Control of Manufacturing
? For industrial Temperature Measurement
? Industrial Pyrometer

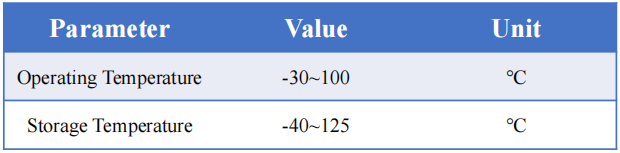

Absolute Maximum Rating:

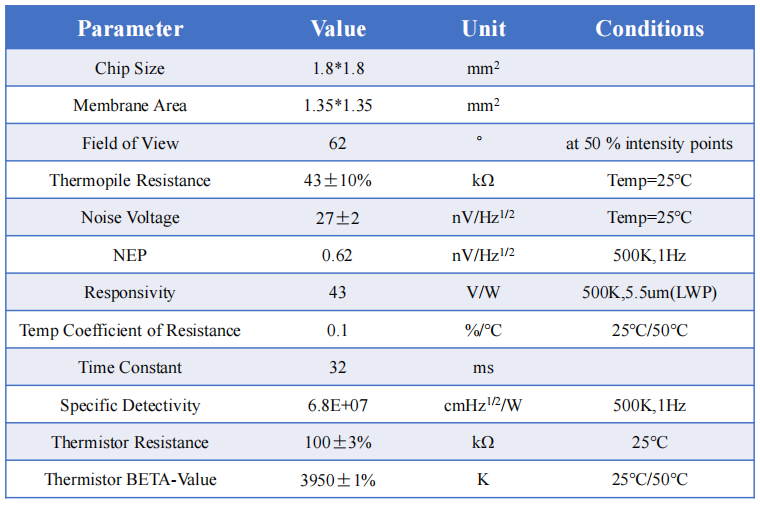

Performance Specification:

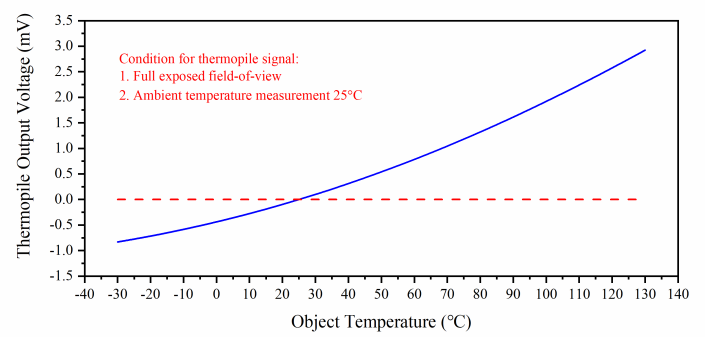

Typical Performance Curve:

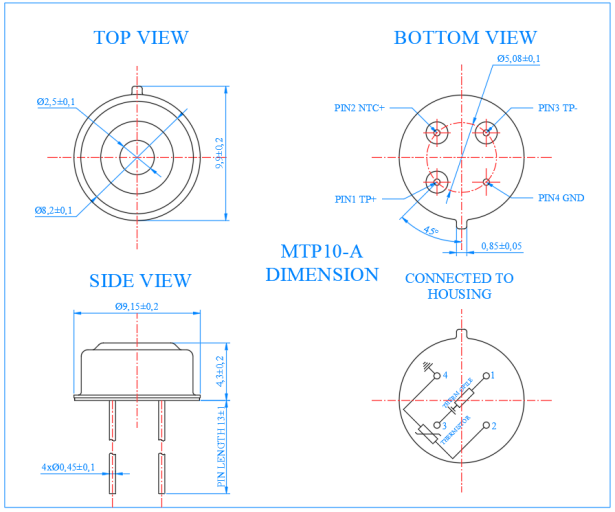

Mechanical Dimension:
