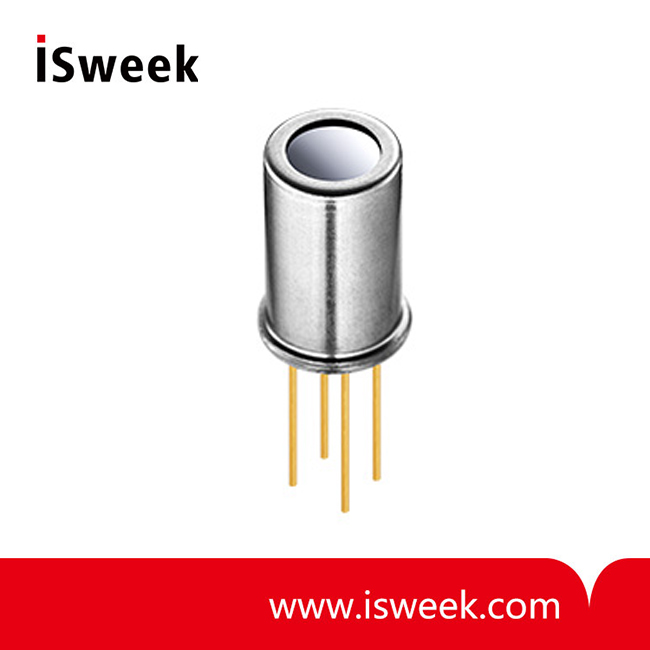

Thermopile Temperature Sensor - MTP10-A6L10.6
? MEMS Thermopile Element
? TO-39 Package
? High Sensitivity
? Silicon Lens
? High Accuracy NTC
? DS Ratio 10:1
- Model Number: MTP10-A6L10.6
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Features:
? MEMS Thermopile Element
? TO-39 Package
? High Sensitivity
? Silicon Lens
? High Accuracy NTC
? DS Ratio 10:1
Applications:
? Non-contact Temperature Measurements
? Continuous Temperature Control of Manufacturing
? For Industrial Remote Temperature Measurement

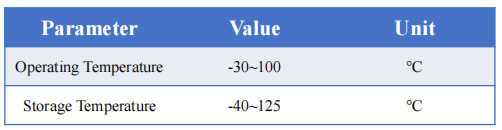

Absolute Maximum Rating：

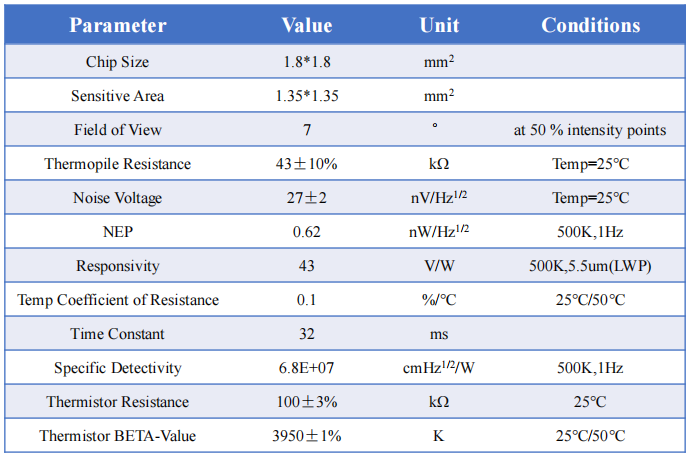

Performance Specification：

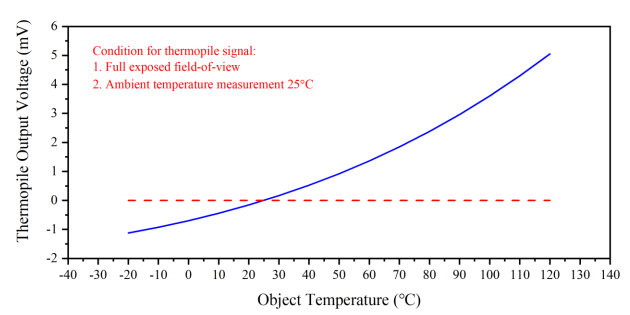

Typical Performance Curve：

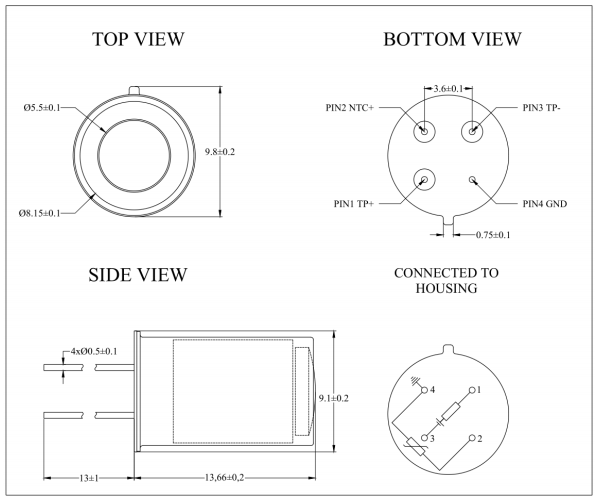

Mechanical Dimension：
