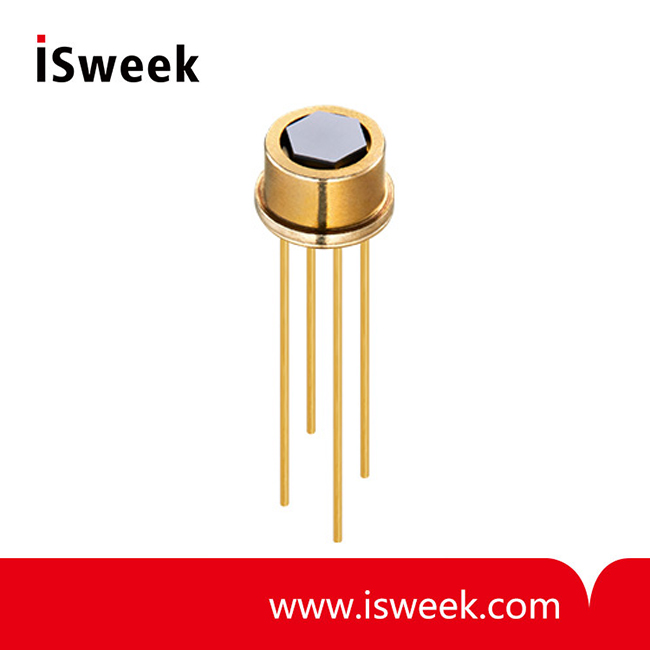

Thermopile Temperature Sensor - MTP10-B7F55 TSR
? MEMS Thermopile Element
? TO-39 Package
? Excellent Thermal Shock Resistance
? High Sensitivity
? 5.5um LWP Filter
? High Accuracy NTC
- Model Number: MTP10-B7F55 TSR
- Data Sheet:
- Quantity:
- - +
Product Specification
Features:
? MEMS Thermopile Element
? TO-39 Package
? Excellent Thermal Shock Resistance
? High Sensitivity
? 5.5um LWP Filter
? High Accuracy NTC
Applications:
? Non-contact Temperature Measurements
? Forehead Thermometers
? Continuous Temperature Control of Manufacturing
? Consumer Applications
? Home Appliance Temperature Measurement

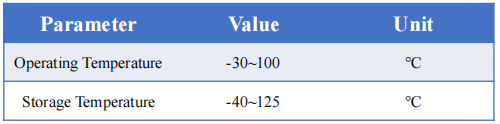

Absolute Maximum Rating：

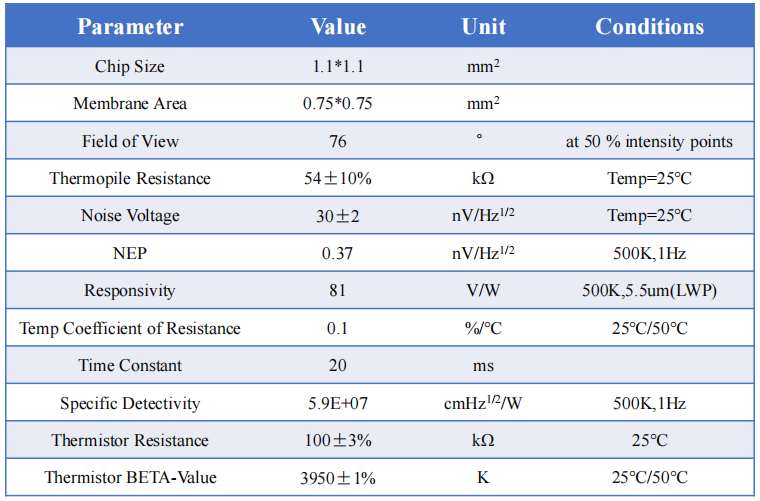

Performance Specification：

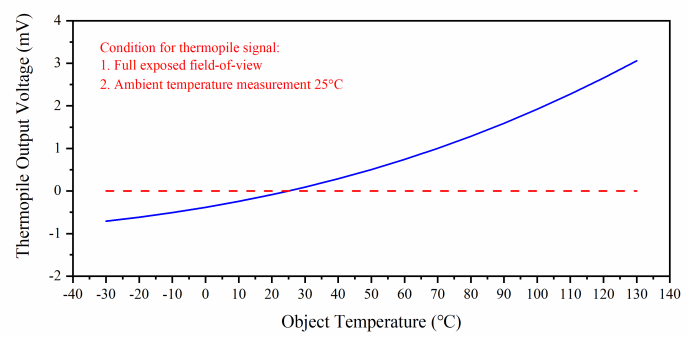

Typical Performance Curve:

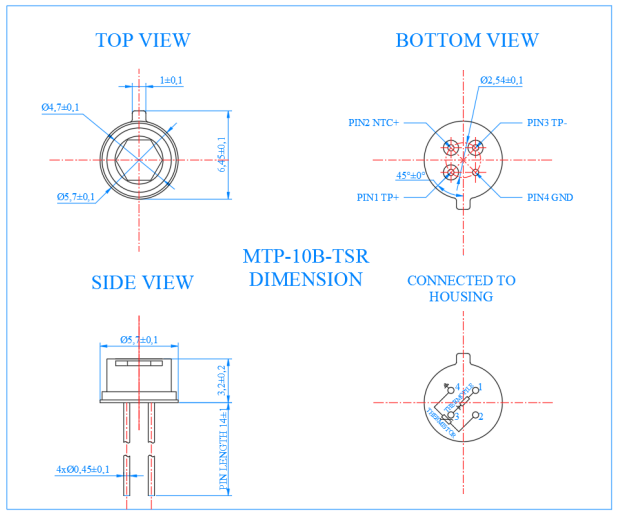

Mechanical Dimension:
