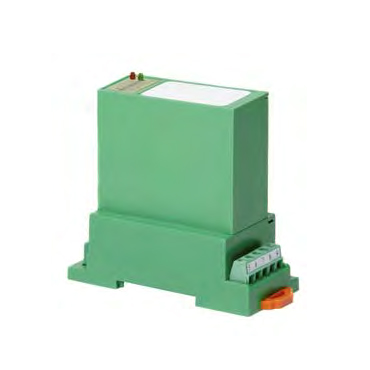

Two Element, 3-Wire RS485 AC Voltage Digital Transducer - CRD4550

Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: True RMS,Average RMS
Elements: Three Phase 3 Wire
Power: 24 Vdc Power
Data Type: ASCII,MODBUS
LED Indicator: LED Indicator
Mount: DIN Rail Mount,Panel Mount

  • Model Number: CRD4550
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Two Element, 3-Wire RS485 AC Voltage Digital Transducer
Mouse over image to zoom
Share:

Product Specification

The CRD4500 Series Data Stream Digital Transducers are designed for applications where AC current waveforms are not purely sinusoidal. The digital technology is used to measure voltage, current, power frequency and energy in single and three phase designs. The data is streamed over an RS485 IEEE bus which enables multiple transducers to communicate thru a single master connection. These advanced sensors are ideal for entire plant or zone monitoring. Also, the communication alagorithm can be pre-ordered with ASCII based control or modified MODBUS based control.

CRD4550 AC Voltage Digital Transducer Features
? Heart Beat and Communication Indicators
? Pre-Calibrated with Non-Volatile Memory
? RS485 Output
? Optional MODBUS Output
? Voltage Input up to 300 VAC
? Three Phase 3 Wire
? DIN Rail or Surface Mount

CRD4550 AC Voltage Digital Transducer Specifications
? Basic Accuracy: 0.5%
? Frequency Range 20 Hz to 5 KHz
? Continuous Overvoltage: 2 times Full Scale
? Isolation Voltage: 2500 VDC
? Supply Voltage: 24VDC +/- 5%
? Supply Power: Less than 250 mWatts
? Output ESD Protection: +/- 15KV
? Output Resolution: 16 BIT
? Operating Temperature: 0 to 50 ℃

CRD4550 AC Voltage Digital Transducer Applications
? Sub-Metering Energy Measurement
? Motor Loads
? Remote Monitoring
? Automatic Control Systems
? Load Shedding

CRD4550 AC Voltage Digital Transducer Sensing
? True RMS Voltage, Each Phase
