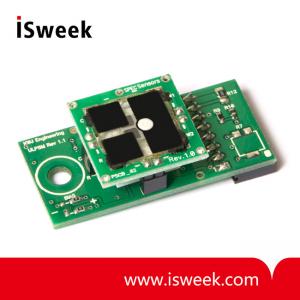

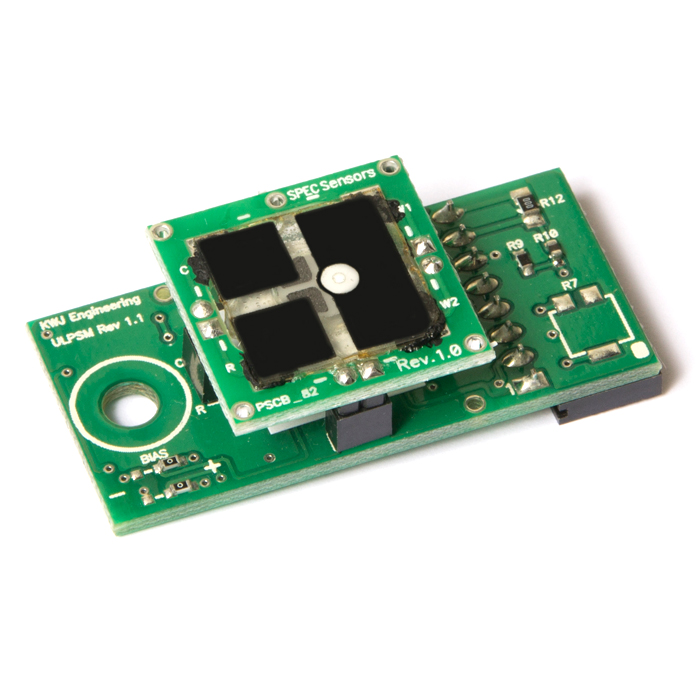

Ultra-Low Power Analog Ozone (O3) Sensor Module - ULPSM-O3 968-046

? Measurement Range: 0 to 20 ppm?
? Lower Detection Limit: < 0.1 ppm
? Resolution: < 0.1 ppm
? Accuracy: < ± 2 % of reading?
? Response Time T90: < 30 seconds?
? Power-On Stabilization Time: 60 minutes recommended?
? 0 to 3 V Analog Signal Output
? Low Power Consumption < 45 μW

Model Number: ULPSM-O3 968-046
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ULPSM-O3 968-046 Ultra-Low Power Analog O3 Sensor Module Description
ULPSM-O3 968-046 uses the new 110-406 Ozone sensor with improved stability and ppb performance!

Quickly integrate Ozone sensing into your system with very low power consumption and a simple analog sensor signal output. The ULPSM converts the Ozone sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.

ULPSM-O3 968-046 Ozone Sensor O3 Sensor Module Benefits
? NEW 110-406 Ozone Sensor
? 0 to 3 V Analog Signal Output
? Low Power Consumption < 45 μW
? Fast Response
? On-board Temperature Sensor
? Easy Sensor Replacement
? Standard 8-pin connector

ULPSM-O3 968-046 Ozone Sensor O3 Sensor Module Applications
? Fixed Industrial Safety Monitoring
? Portable Industrial Safety Monitoring
? Portable Personal Safety Monitor
? Indoor Air Quality Monitoring
? Outdoor Air Quality Monitoring
? Air Purification Control

ULPSM-O3 968-046 Ozone Sensor O3 Sensor Module Performance Characteristics

Measurement Range	0 to 20 ppm
Lower Detection Limit	< 0.1 ppm
Resolution	< 0.1 ppm
Accuracy	< ± 2% of reading
Response Time T90	< 30 seconds
Power-On Stabilization Time	60 minutes recommended
