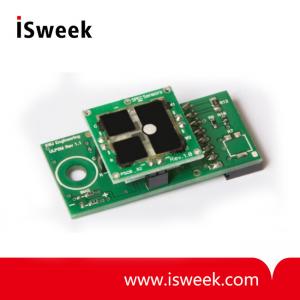

Ultra-Low Power Analog Sensor Module for Ethanol - ULPSM-Ethanol 968-007
? 0 to 3 V Analog Signal Output
? Low Power Consumption < 45 μW
? Fast Response
? On-board Temperature Sensor
? Easy Sensor Replacement
? Standard 8-pin connector
- Model Number: ULPSM-Ethanol 968-007
- Data Sheet:
- Quantity:
- - +
Product Specification
Ultra-Low Power Analog Sensor Module for Ethanol APPLICATIONS:
? Law Enforcement Breathalyzers
? Evidential Breath Alcohol Testing
? Portable Breath Alcohol Tester
? Personal Breathalyzers
Ultra-Low Power Analog Sensor Module for Ethanol BENEFITS:
? 0 to 3 V Analog Signal Output
? Low Power Consumption < 45 μW
? Fast Response
? On-board Temperature Sensor
? Easy Sensor Replacement
? Standard 8-pin connector
Ultra-Low Power Analog Sensor Module for Ethanol DESCRIPTION:
Quickly integrate Breath Alcohol or Ethanol Sensing into your system with very low power consumption and a simple analog sensor signal output.
The ULPSM converts the Ethanol sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
MEASUREMENT PERFORMANCE CHARACTERISTICS:
|
Measurement Range |
0 to 200 ppm |
|
Lower Detection Limit |
0.2 ppm |
|
Resolution |
0.2 ppm |
|
Accuracy |
< ± 2 % of reading |
|
Response Time T90 |
< 60 seconds |
|
Power-On Stabilization Time |
15 minutes recommended |

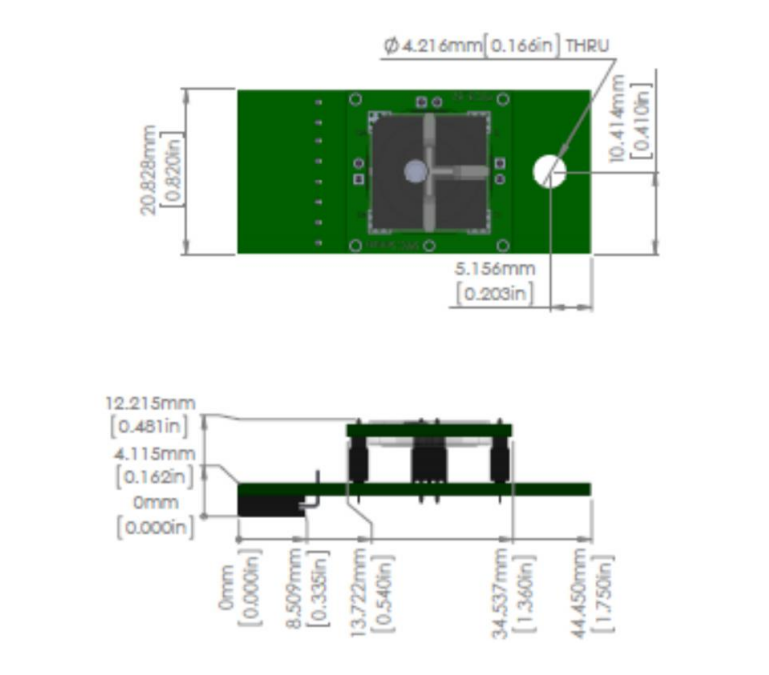

PACKAGE OUTLINE DRAWING & DIMENSIONS
