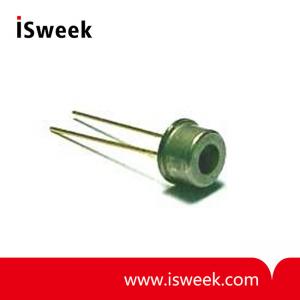

UV-C Sensor - GUVC-T11GD
? ?Aluminium Gallium Nitride Based Material
? ?Schottky-type Photodiode
? ?Photovoltaic Mode Operation
? ?Good Solar Blindness
- Model Number: GUVC-T11GD
- Data Sheet:
- Quantity:
- - +
Product Specification
Features：
? Aluminium Gallium Nitride Based Material
? Schottky-type Photodiode
? Photovoltaic Mode Operation
? Good Solar Blindness
Applications：
? Pure UV-C Monitoring
? Sterilization Lamp Monitoring
Absolute Maximum Ratings：
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Remark |
|
Storage Temperature |
Tst |
-40 |
90 |
℃ |
|
|
Operating Temperature |
Top |
-30 |
85 |
℃ |
|
|
Reverse Voltage |
Vr, max. |
|
3 |
V |
|
|
Forward Current |
If,max. |
|
1 |
mA |
|
|
Optical Source Power Range |
Popt |
0.01 |
100 |
mW/cm2 |
UVC Lamp |
|
Soldering Temperature |
Tsol |
|
260 |
℃ |
within 10 sec. |
※Notice: apply to us in the case that Optical Source Power is over 100 mW/cm2.
Characteristics (at 25℃)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Conditions |
|
Dark Current |
Id |
|
|
1 |
nA |
Vr = 1 V |
|
Photo Current |
Iph |
|
68 |
|
nA |
UVC Lamp, 1mW/cm2 |
|
Temperature Coefficient |
Itc |
|
-0.07 |
|
%/℃ |
UVC Lamp |
|
Responsivity |
R |
|
0.06 |
|
A/W |
λ = 254 nm, Vr = 0 V |
|
Spectral Detection Range |
λ |
220 |
|
280 |
nm |
10% of R |
|
Active area |
|
|
0.076 |
|
mm2 |
|

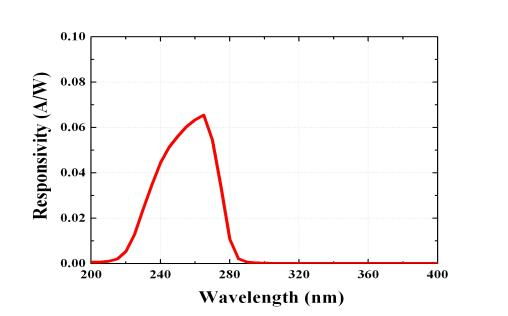

Responsivity Curve：

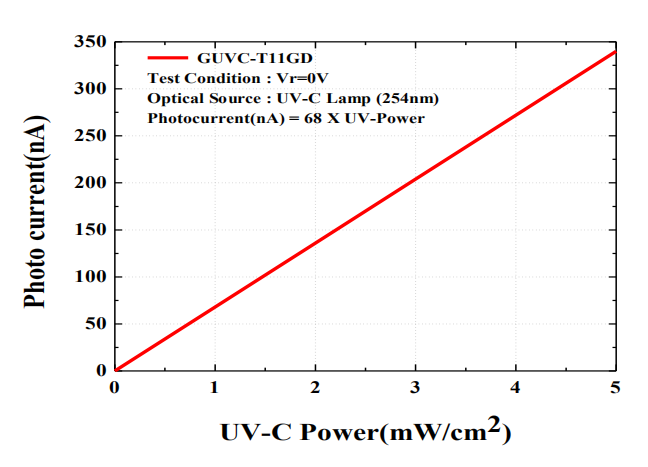

Photocurrent along UV Power：

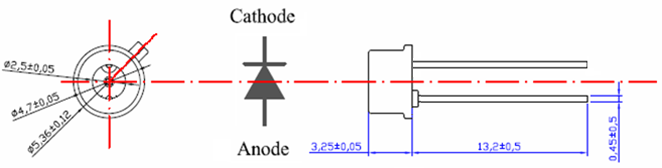

Outline Diagrams and Dimensions：
