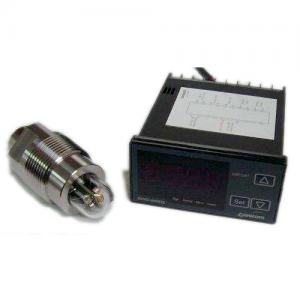

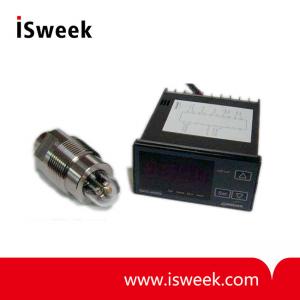

UV Radiometer 2.0 - GUVC-T11GS2-4LW11

- Fixing method : Panel Insertion
- Size : 96 mm X 48 mm X 108 mm
- Thread/Length for Mounting:PT 1? "/21mm
- Power Consumption: max 5VA
- Cable length : 5 m (standard)
- 4-20mA Current Output, RS485 Communication
- Detection Range: 220~280nm
- Detection Power Range: 0~100?/?

  • Model Number: GUVC-T11GS2-4LW11
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV Radiometer 2.0
  • UV Radiometer 2.0
Mouse over image to zoom
Share:

Product Specification

GUVC-T11GS2-4LW11 UV Radiometer 2.0 Description
 Check the absolute power and relative power (change the setting) with UVA/B/C Sensor Probe
 There are two relay (Normal & alarm). And you can set the alarm value.


GUVC-T11GS2-4LW11 UV Radiometer 2.0 Applications
 UV Purification (Water)
 Water treatment


GUVC-T11GS2-4LW11 UV Radiometer 2.0 Constitution
Display, Sensor Probe, Connection Cable

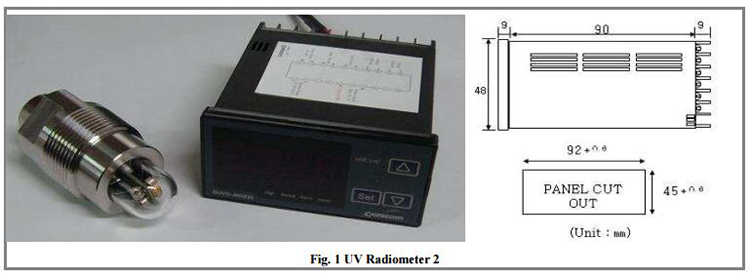

GUVC-T11GS2-4LW11 UV Radiometer 2.0 Case dimensions
Thread/Length for Mounting
Body (mm)
Window (mm)
Head (mm)
Wrench Size (mm)
Length (mm)
Weight (kg)
Body (stainless steel)
PT 1? "/21 mm
Φ42
Φ24×24
Φ36×15
 36
81 0.44 316-L ( 1.4404 )
* Panel Cutting Size : 92 × 45 mm2 (Tolerance : -0, + 0.5mm )

GUVC-T11GS2-4LW11 UV Radiometer 2.0 Absolute Maximum Ratings
Parameter
Value
Unit Remark
Min.
Typ.
Max.
 Operating Temperature
-30

85 °C
Sensor Probe
0
50 °C
Display
Power Consumption


5 VA


GUVC-T11GS2-4LW11 UV Radiometer 2.0  Electro-Optical Characteristics (at 25°C)
Parameter
Value
Unit
Remarka
Min.
 Typ.
 Max.
Detection Wavelength Range
220
280 nm
Detection Power Range
0
100
mW/cm2
