UV Radiometer 2.0 - GUVx-T1xGS2-I8LW6.1
- Water Environments (10Bar)
- Fixing method: Panel Insertion
-Thread/Length for probe hold: M36 x 1.5p/12mm
- Power Consumption: max 5VA
- Detection Power Range: 0~100 ?/?
- Detection Wavelength Range:
GUVV-T11GS2-I8LW6.1: 230~395nm
GUVB-T12GS2-I8LW6.1: 220~320nm
GUVC-T11GS2-I8LW6.1: 220~280nm
- Quantity:
- - +
Product Specification
GUVx-T1xGS2-I8LW6.1?UV Radiometer 2.0?Applications
?UV Purification (Water)
?Water treatment
GUVx-T1xGS2-I8LW6.1?UV Radiometer 2.0?Constitution
?Display, Sensor Probe, 5m Cable

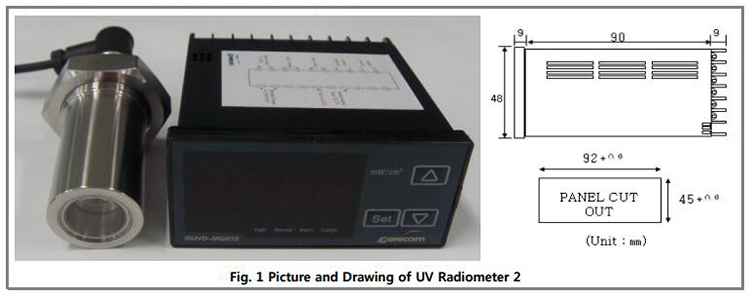

GUVx-T1xGS2-I8LW6.1?UV Radiometer 2.0?Case dimensions
Thread/Length for?probe hold |
Diameter? (mm) |
Window? (mm) |
Dept? (mm) |
Length? (mm) |
Weight? (g) |
Cable Length? (m) |
Material |
M36 x 1.5p/12 mm | 32 | 24 | 59 | 96 | 545 | 5 | STS 316-L |
GUVx-T1xGS2-I8LW6.1?UV Radiometer 2.0?Absolute Maximum Ratings
Parameter |
Value |
Unit |
Remark |
||
Min. |
Typ. |
Max. |
|||
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
0 |
|
50 |
°C |
Display |
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-T1xGS2-I8LW6.1?UV Radiometer 2.0?Electro-Optical Characteristics (at 25°C)
Parameter |
Value |
Unit |
Remark |
|||
Min. |
?Typ. |
Max. |
||||
Detection Wavelength Range |
GUVV-T11GS2-I8LW6.1 |
230 |
|
395 |
nm |
|
GUVB-T12GS2-I8LW6.1 |
220 |
|
320 |
nm |
|
|
GUVC-T11GS2-I8LW6.1 |
220 |
|
280 |
nm |
DVGW |
|
Detection Power Range |
0 |
|
100 |
mW/cm2 |
|
