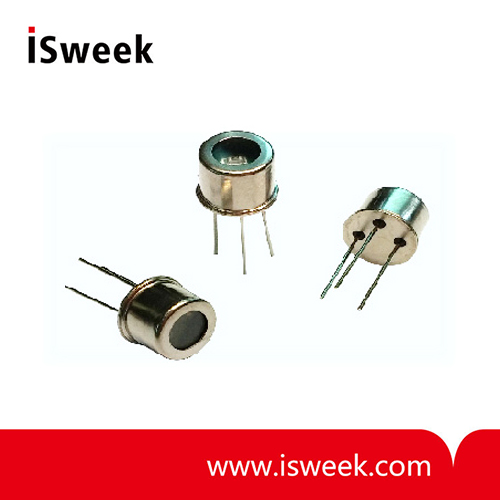

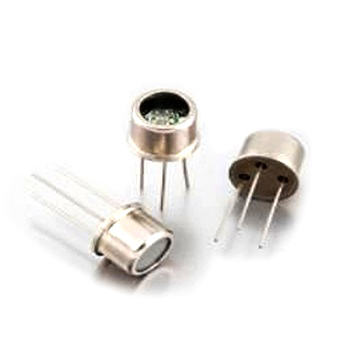

UV Sensor Module - GUVB-T21GH
- Chip size 0.4mm,TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
- Supply Voltage: 1.8~5.5V
- Supply Current: 50 μA
- Responsivity: 1.3 mV/nW
- Spectral Detection Range: 220~320 nm
- Model Number: GUVB-T21GH
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVB-T21GH UV Sensor Module Features
- Chip size 0.4mm, TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
2. GUVB-T21GH UV Sensor Module Applications
UV-B Lamp Monitoring
UV Index monitoring

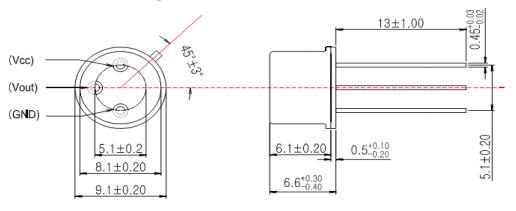

3. GUVB-T21GH UV Sensor Module Outline Diagrams and Dimensions
4. GUVB-T21GH UV Sensor Module Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. GUVB-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50 μA
Responsivity: 1.3 mV/nW
Spectral Detection Range: 220~320 nm
Output Voltage(1 mW/cm2): 0.93V
Detection Power Range: 0~5.38 mW/cm2
Rising Time: 3ms
