UV Sensor Module - GUVV-T21GH
- Supply Voltage: 1.8~5.5V
- Responsivity: 1mV/nW
- Spectral Detection Range: 230~395nm
- Chip size 0.4mm;TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
- Model Number: GUVV-T21GH
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVV-T21GH UV Sensor Module Features
Single Supply Voltage Operation
Voltage Output
High Sensitivity and Good Solar Blindness
Small and Compact Size
2. GUVV-T21GH UV Sensor Module Applications
UV-A Lamp Monitoring

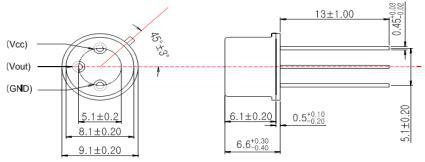

3. GUVV-T21GH UV Sensor Module Outline Diagrams and Dimensions
4. GUVV-T21GH UV Sensor Module Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. GUVV-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50μA
Responsivity: 1mV/nW
Spectral Detection Range: 230~395nm
Output Voltage: 1.55V
Offset Voltage: 0.01V
Detection Power Range: 0~3.2mW/cm2
Rising Time: 3ms
