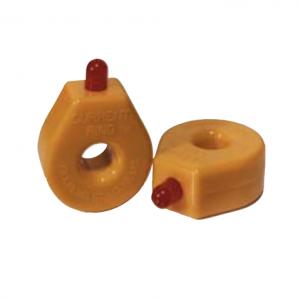

Wire-mounted Electrical Current Indicator - CR45 Series
? Self powered
? Red or green indicator
? Easy to Install
? Supplied with plastic tie
? Bright yellow case for easy identification
? Panel mounting bracket available
- Quantity:
- - +
Product Specification
The CR45 series of Wire-Mounted Electrical Current Indicators provides an effective method of monitoring electrical current. The indicator is attached directly to a current-carrying wire. When the current exceeds the turn-on point, the LED will illuminate to indicate the presence of current.
CR45 Series Wire-mounted Electrical Current Indicator Features
? Self powered
? Red or green indicator
? Easy to Install
? Supplied with plastic tie
? Bright yellow case for easy identification
? Panel mounting bracket available
CR45 Series Wire-mounted Electrical Current Indicator Specifications
? Turn-on Point (1 Pass): 2.0 for Red
? Turn-on Point (1 Pass): 2.5 for Green
? Max. Continuous Current: 100 Amps
? Frequency: 50 to 60 Hz
CR45 Series Wire-mounted Electrical Current Indicator Applications
? Monitor status of heater elements
? Observe remote loads
? Indicate phase loss
? Monitor motor operation
CR45 Series Wire-mounted Electrical Current Indicator PART NUMBERS
Part Number |
LED Color |
Turn On Point (1 pass) |
CR45-R |
Red |
2.0 AAC |
CR45-G |
Green |
2.5 AAC |
CR45-B |
Blue |
2.0 AAC |
CR45-W |
White |
2.0 AAC |
CR45-Y |
Yellow |
2.0 AAC |
CR45-A |
Amber |
2.0 AAC |
