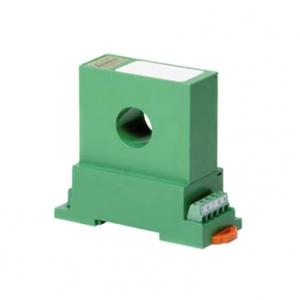

AC/DC Hall Effect Current Transducer - CR5410

? Current: AC Current, DC Current
? Voltage Type: AC Voltage
? Frequency: AC Frequency, DC Frequency
? RMS: True RMS, Average RMS
? Elements: Single Element
? Outputs: 0 +/- 5 VDC, 0 +/- 5 VAC
? Power: 24 Vdc Power
? Hall Effect: Hall Effect
? Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR5410
  • Data Sheet: Date Sheet File
Quantity:
- +
  • AC/DC Hall Effect Current Transducer
Mouse over image to zoom
Share:

Product Specification

CR5410 Series AC/DC Hall Effect Current Transducers are designed to provide a bipolar output that proportionally reflects (traces) the waveform of the input current. These devices are specifically targeted to be used in applications where multi-mode current sensing is required.

CR5410 AC/DC Hall Effect Current Transducer Features
? Non-contact current sensing
? DIN Rail or Panel Mount
? Connection diagram printed on case
? Output isolated from input

CR5410 AC/DC Hall Effect Current Transducer Specifications
? MTBF: Greater than 100 K hours
? Output: ±5 VAC/DC
? Power Source: 24 VDC
? Output Load: 2 K ohm or greater
? Insulation Voltage: 2500 VDC
? Operating Temperature: 0°C to +50°C
? Thermal Drift: 500 PPM/°C
? Basic Accuracy: 1.0%
? Response Time: 0.2mS max
? Frequency Range: DC only for DC and 20Hz to 4 KHz for AC

CR5410 AC/DC Hall Effect Current Transducer Applications
? Multi-mode ground paths carrying both AC and DC signals
? Feed back loop building block
? Inverter and multi-frequency drives

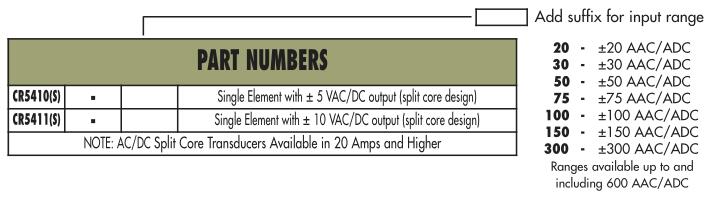

CR5410 AC/DC Hall Effect Current Transducer PART NUMBERS
