Acoustic Fiber Optic Pressure Sensor - FOP-MA

Product Specification

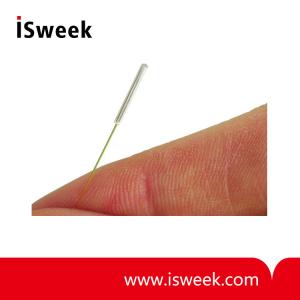

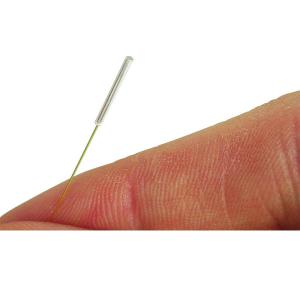

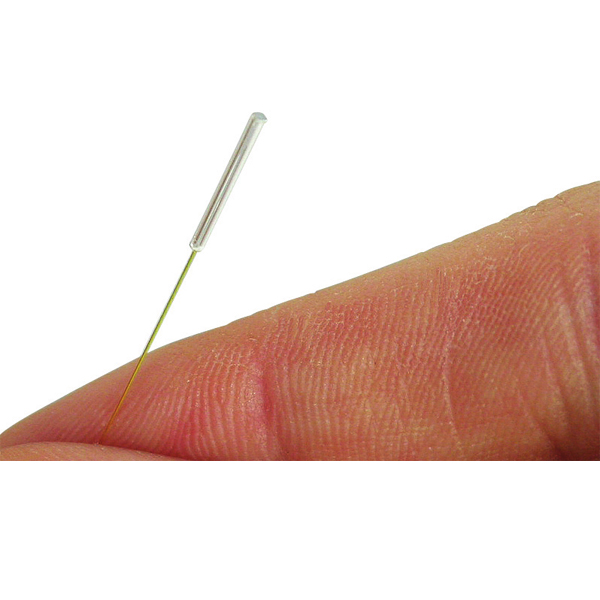

FOP-MA Acoustic Fiber Optic Pressure Sensor

The FOP-MA is a fiber optic pressure sensor designed for use in acoustics or microphone applications or whenever a very sensitive pressure sensor is needed. It features high frequency response and a high sensitivity to detect slight pressure variations under the most adverse conditions.

The FOP-MA acoustic pressure sensor offers small size, high accuracy, immunity to EMI/RFI, and resistance to corrosive environments.

FOP-MA Acoustic Fiber Optic Pressure Sensor Key Features:
? Miniature size
? All-optic
? Immune to EMI/RFI
? High resolution
? Frequency response up to 30 kHz

FOP-MA Acoustic Fiber Optic Pressure Sensor Applications:

? Acoustics
? Microphone
? Automotive
? Aerospace
? Aerodynamics

FOP-MA Acoustic Fiber Optic Pressure Sensor Specifications
Pressure range: 0 - 2 psi
Resolution(*1): 0.0075 psi
Accuracy(*2): ±1% of full scale
Frequency response(*3): Up to 30 kHz
Connector type: ST connector
Operating temperature: -20℃ to 150℃ (-4℉ to 302℉)

*1. Signal conditioner dependent.
*2. Relative to atmospheric pressure.
*3. Maximum achieved with a Veloce 50 signal conditioner.
