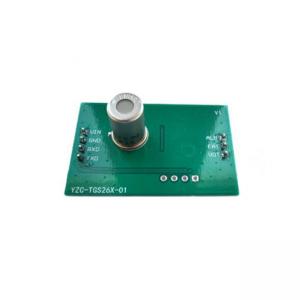

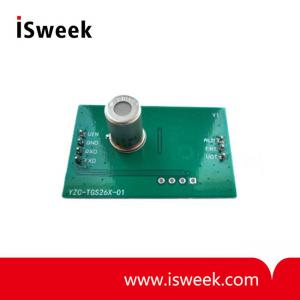

AG-2 Module With Figaro’s TGS26 Series Sensors - AG-2-GSB-M26XX

has good durability, stability, and anti-poisoning
digital communication
both residential and industrial gas detection applications

Model Number: AG-2-GSB-M26XX
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AG-2 module with Figaro’s TGS26 series sensors?Product Description：

The AG-2-GSB-M26XX is an embedded type module equipped with the Figaro’s TGS26 series semiconductor Sensor, capable of detecting via gases such as methane (CH4), LP gas, and Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti-poisoning. It includes a built-in temperature sensor for data correction via software algorithms to minimize environmental impact on measurement accuracy. It utilizes digital communication through a UART bus output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for both residential and industrial gas detection applications.

AG-2 module with Figaro’s TGS26 series sensors?Technical Specification：

Item	Specification
Model Number	AG-2-GSB-M26XX
Target Gases	CH4, C3H8, H2 etc
Sensing Principle	Semiconductor
Detection Range	See corresponding sensor spec
Measurement Error	< ±5% FS
Operating Voltage	5V±0.1V DC
Operating Current	See corresponding sensor spec
Output Signal	UART (+3.3V TTL)
Temperature Range	-10 - 55°C
Humidity Range	0% -90%RH
Pressure Range	1 ± 0.1 atm
Storage Temperature	10 - 40°C
Size	LWH=41mm27mm22mm(TGS2610-D)
Expected Life	See the corresponding sensor data sheet for details
