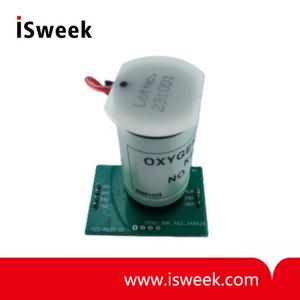

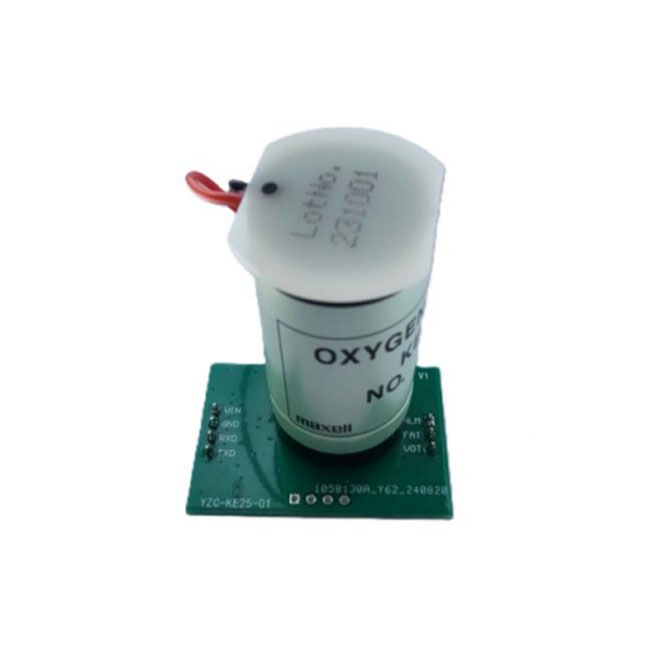

Equipped with KE-25LF Battery lead-free oxygen sensor module (O2) - AG-4-O2-MKE25

Good stability and selectivity
Digital communication mode
Indoor and outdoor air quality testing
Gas detection in industrial fields, etc

Model Number: AG-4-O2-MKE25
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Equipped with KE-25LF Battery lead-free oxygen sensor module (O2) AG-4-O2-MKE25?Product Description：

The AG-4-O2-MKE25 is an embedded type module equipped with the Figaro’s Oxygen Sensor KE25, for accurately detecting Oxygen (O2) gas concentrations in various environments. The module has been pre-calibrated before leaving the factory and has good stability and selectivity. It uses digital communication (UART bus output) for gas concentration, which allows users to easily and quickly integrate the module into various systems, making it suitable for both indoor and outdoor air quality detection, as well as industrial gas detection.

Equipped with KE-25LF Battery lead-free oxygen sensor module (O2)?AG-4-O2-MKE25?Application：

? Oxygen detectors

? Combustion gas monitoring

? Refrigeration (food industry)

? greenhouses

Equipped with KE-25LF Battery lead-free oxygen sensor module (O2)?AG-4-O2-MKE25?Technical Specification：

Item	Specification
Model Number	AG-4-O2-MKE25
Target Gases	O2
Sensing Principle	Electrochemical
Detection Range	0-100% vol
Resolution	0.1%
Measurement Error	< ±5% FS
Operating Voltage	3.2 - 5.5V DC
Operating Current	≤ 500mA@5V
Output Signal	UART (+3.0V TTL)
Temperature Range	10 - 40°C
Humidity Range	0% -90%RH
??Pressure Range	900.0 to 1120 mbar
Storage Temperature	10 to +40°C
Size	LWH=41mm27mm52mm
Expected Life	≥ 5 years
