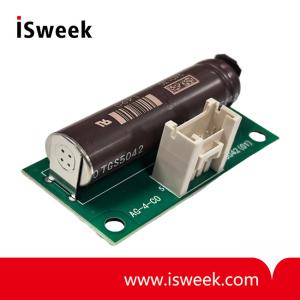

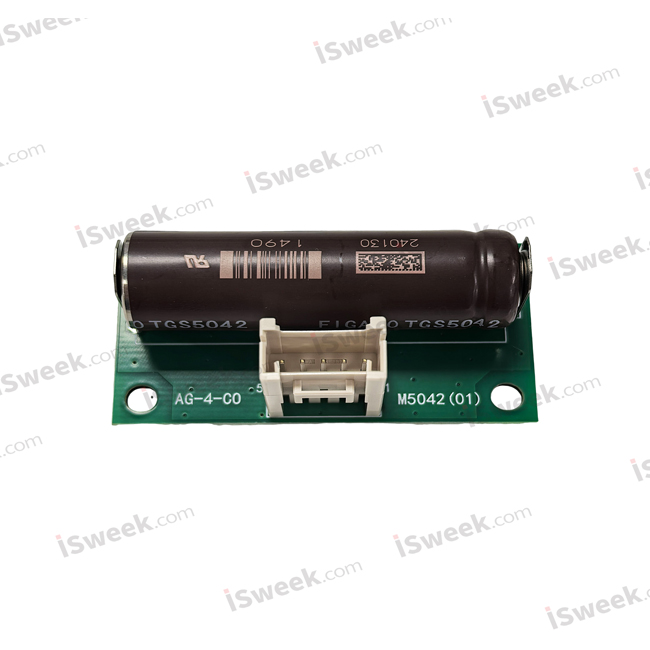

TGS5042 Electrochemical Carbon Monoxide sensor module (CO) - AG-4-CO-M5042

It has good stability and selectivity
Digital communication mode
Indoor and outdoor air quality testing
Gas detection in industrial fields, etc

Model Number: AG-4-CO-M5042
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TGS5042 Electrochemical Carbon Monoxide sensor module (CO) AG-4-CO-M5042 Product Description：

The AG-4-CO-M5042 is an embedded type module equipped with the Figaro’s?carbon monoxide gas sensor TGS5042, for accurately detecting carbon monoxide? (CO) gas concentrations in various environments. The module has been precalibrated before leaving the factory and has good stability and selectivity. It allows?users to easily and quickly integrate the module into various systems, making it?suitable for both indoor and outdoor air quality detection, as well as industrial gas?detection.

TGS5042 Electrochemical Carbon Monoxide sensor module (CO)?AG-4-CO-M5042 Application：?

? Residential and commercial CO detectors

? CO monitors for industrial applications

? Ventilation control for indoor parking garages

? Fire detection

TGS5042 Electrochemical Carbon Monoxide sensor module (CO)?AG-4-CO-M5042?Technical Specification：

Item	Specification
Model Number	AG-4-CO-M5042
Target Gases	CO
Sensing Principle	Electrochemical
Detection Range	0-800ppm
Current consumption	≤ 5mA
Input voltage	2.5~5.3V DC
Output VCONC	0 ~ 2V DC
Normal operation	VCONC = 2- [CO conc(ppm)/400]
VCONC in 0 ppm CO	2.0±0.1V
VCONC in 400 ppm CO	1.0±0.1V
Warm up time	≤ 30 sec
perating temperature	-5?C ~ +55?C
Operating humidity	5 ~ 95%RH
Storage conditions	-5?C ~ +55?C/5 ~ 95%RH
Size	LWH=41mm27mm52mm
Expected Life	≥ 5 years
