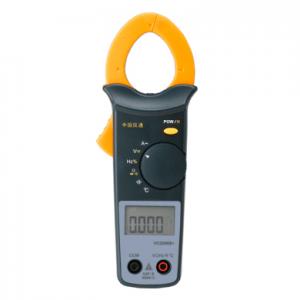

Auto-Range AC Clamp Multimeter with Thermometer and CPU - VC3266B+
?3 3/4 digits display
?4000 count resolution
?40A/400A AC current measurement, resolution:10mA
?400mV~600v DC Voltage measurement
?4V~600V AC Voltage measurement
?Resistance, continuity and diode measurements
?0.001Hz~5MHz Frequency measurement and 99% duty cycle
?10pF~100μF Capacitance measurement
- Model Number: VC3266B+
- Quantity:
- - +
Product Specification
VC3266B+?AC Clamp Multimeter?General Features
? 3 3/4 digits display
? 4000 count resolution
? 40A/400A AC current measurement, resolution:10mA
? 400mV~600v DC Voltage measurement
? 4V~600V AC Voltage measurement
? Resistance, continuity and diode measurements
? 0.001Hz~5MHz Frequency measurement and 99% duty cycle
? 10pF~100μF Capacitance measurement
? Temperature measurement with K type temperature probe
? Data hold
? One-key switches and easy to operate with one hand
? Phase Sequence measurement with Phase accessory
? Auto power-off?
VC3266B+?AC Clamp Multimeter?Technology ?Specification:
|
Function |
Range |
?Resolution |
Accuracy |
|
?DC Voltage |
400mV~600V |
100μV |
±(1.0%+3d) |
|
AC Voltage |
4V~600V |
1mV |
±(1.5%+3d) |
|
AC Current |
40A/400A |
1mA |
±(3.0%+3d) |
|
Resistance |
400Ω~40MΩ |
10mΩ |
±(1.0%+3d) |
|
Temperature |
-10℃~400℃ |
1℃? |
±(1.0%+5d) |
