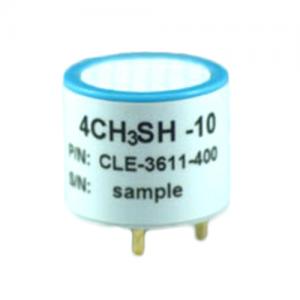

Classic Line 4-CH3SH-10 Methyl Mercaptan Sensor 0-10 ppm - CLE-3611-400

? Nominal Range: 10 ppm
? Maximum Overload: 20ppm
? Sensitivity: 0.70 ± 0.15 μA/ppm
? Resolution: 0.1 ppm
? Response Time (T90): ≤ 35 seconds
? Linearity: Linear
? Temperature Range: -20°C to 50°C
? Operating Humidity: 15 ~ 90%RH non-condensing

  • Model Number: CLE-3611-400
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Classic Line 4-CH3SH-10 Methyl Mercaptan Sensor 0-10 ppm
Mouse over image to zoom
Share:

Product Specification

Classic Line 4-CH3SH-10 Sensor
Methyl Mercaptan Sensor 0-10 ppm

4-CH3SH-10 Methyl Mercaptan Sensor Specification

Performance Characteristics
Part number
 CLE-3611-400
Nominal Range
 10 ppm
Maximum Overload
 20 ppm
Sensitivity
 0.70 ± 0.15 μA/ppm
Baseline (20°C)
 < ± 0.2 μA
Baseline Drift (-20 to 50°C)
 0 to 0.6 ppm equivalent
Resolution
 0.1 ppm
Response Time (T90)
 ≤ 35 seconds
Linearity
 Linear
Long Term Output Drift
 <2% signal/month
Operation Conditions
Temperature Range
 -20°C to 50°C
Operating Humidity
 15 ~ 90%RH non-condensing
Pressure Range
 Atmospheric ±10%
Bias Potential
 0 mV
Storage Life
 6 months in RAE container
Storage Temperature
 0°C to 20°C
Expected Operating Life
 2 years in air
Warranty
 12 months from date of despatch
Physical Characteristics
Weight
 5 g (approx)
Orientation Sensitivity
 None

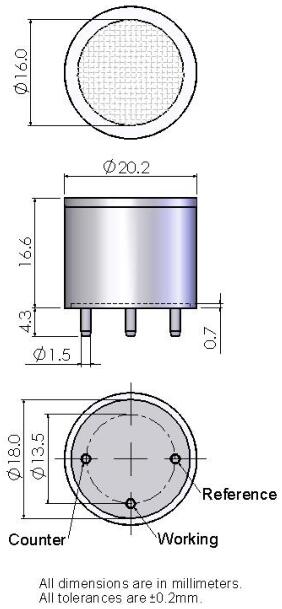

4-CH3SH-10 Methyl Mercaptan Sensor Outline Dimensions
