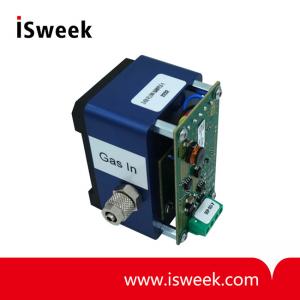

Compact Oxygen Transmitter - OxyFT
Applications
? Glove-box
? Process coating machines
? Inert welding gases
? Heat treating and bright annealing
? Oxygen concentrators
- Model Number: OxyFT
- Data Sheet:
- Quantity:
- - +
Product Specification
OxyFT is an easy to integrate, low-cost transmitter. With optional outputs, measurement ranges, and wide operating temperature ranges, it is a flexible solution for many systems.
Highlights
? Measurement range: 0.1...100% O2
? Ambient air calibration*
? Sensor heartbeat signal
? Low maintenance and self-diagnostics
? Easy integration with any PLC, micro or control/analyzer
Applications
? Glove-box
? Process coating machines
? Inert welding gases
? Heat treating and bright annealing
? Oxygen concentrators
Technical Specifications
|
Sensor |
|
|
Zirconia |
|
|
Measuring range |
0.1...100 % O2 |
|
Response time (T90) |
4 seconds |
|
LDL (sensitivity) |
0.01 % |
|
Operating temperature range |
XX℃…+XX℃ (-XX F…XXX°F) |
|
Pressure range |
900...1100 mBar abs |
|
Life expectancy |
|
|
Humidity |
0...95 %rh non-condensing |
|
Shelf life |
12 months |
|
Process Connection |
Flow-through (2 x 6 mm Swagelock) |
|
Housing material |
|
|
OXY Ft Transmitter |
|
|
Electrical |
|
|
Power supply |
|
|
Maximum power consumption |
|
|
Output signal |
4...20 mA |
|
Digital communication |
RS485 |
|
Digital output options |
|
|
Indicators |
Sensor heartbeat signal (LED or PLC display?) |
|
Mechanical |
|
|
Ingress protection |
|
|
Housing material |
Anodized aluminum |
|
Mounting |
35 mm din rail |
|
Cable length supplied |
|
