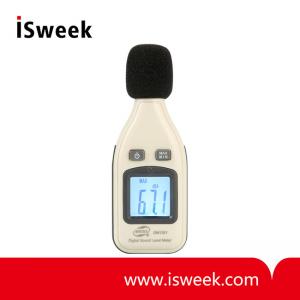

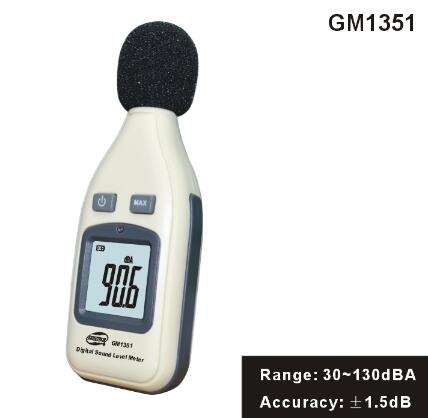

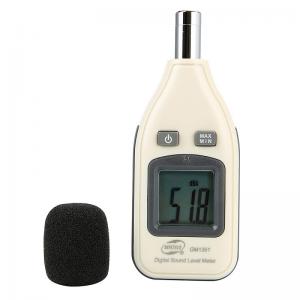

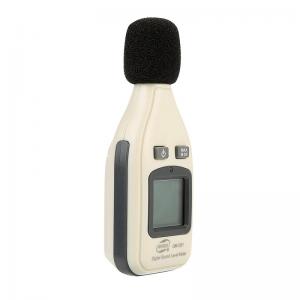

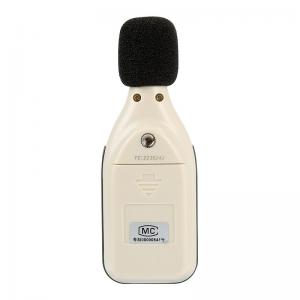

Digital Sound Level Meter - GM1351
? Measuring range: 30~130 dBA
? Accuracy: ±1.5 dB
? Digit & Resolution: 4 digits & 0.1 dB
? Frequency response: 31.5Hz ~8.5KHz
? Frequency weighting?: A
? Sampling rate: 2times/second
? Power supply?: 9V Battery?
? Operating condition?: 0~40℃, 10~80%RH?
- Model Number: GM1351
- Data Sheet:
- Quantity:
- - +
Product Specification
GM1351 Digital Sound Level Meter Introduction
This equipment has been designed to meet the measurement requirement of Safety Engineers, Health, Industrial Safety offices and Sound Quality control in various environment, which include factory, office, traffic, family, and audio system.
This equipment has the
1. It is designed according to the IEC651 TYPE2 & ANSI S1.4 TYPE2
2. Modern, conpact, portable design
3. Accuracy up to ± 1.5 dB
4. Measurement range: 30dBA-130 dBA
5. MAX Hold
6. Auto backlight display
7. Auto power OFF
GM1351 Digital Sound Level Meter Specification
|
Measuring range |
30dBA~130dBA |
|
Accuracy |
±1.5 dB (94dB@1KHz) |
|
Frequency range |
31.5Hz~8.5KHz |
|
Frequency weighting |
A |
|
Digital Display |
4digits |
|
Resolution |
0.1dB |
|
Sample rate |
2 times/second |
|
Microphone |
1/2 inch electret condenser microphone |
|
Max Hold |
MAX |
|
Power supply |
9V Battery |
|
Power life |
About 30 hours (alkaline battery) |
|
Operating condition |
0~40℃, 10~80%RH |
|
Storage condition |
-10~60℃, 10~70%RH |
|
Weight |
144g (including battery) |
|
Dimension |
57*26*149mm |
