Digital Two-wire Loop Powered Infrared Temperature Sensor - PSC-CX

? Temperature range (scalable via software): -30 - 900°C?
? Spectral range: 8 -14μm?
? Optical resolution: 22:1?
? CF-Optics (optional): 0.6mm @10 mm?
? Outputs/analog: 4 - 20 mA?
? Environmental rating: IP 65 (NEMA-4)?
? Ambient temperature: -20 - 75°C?
? Relative humidity: 10-95%, non condensing?

  • Model Number: PSC-CX
  • Data Sheet: Date Sheet File
Quantity:
- +

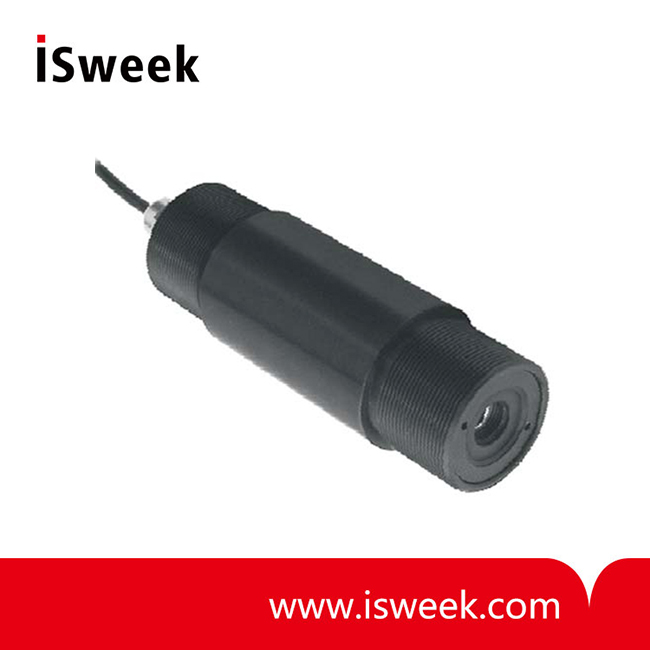

  • Digital Two-wire Loop Powered Infrared Temperature Sensor

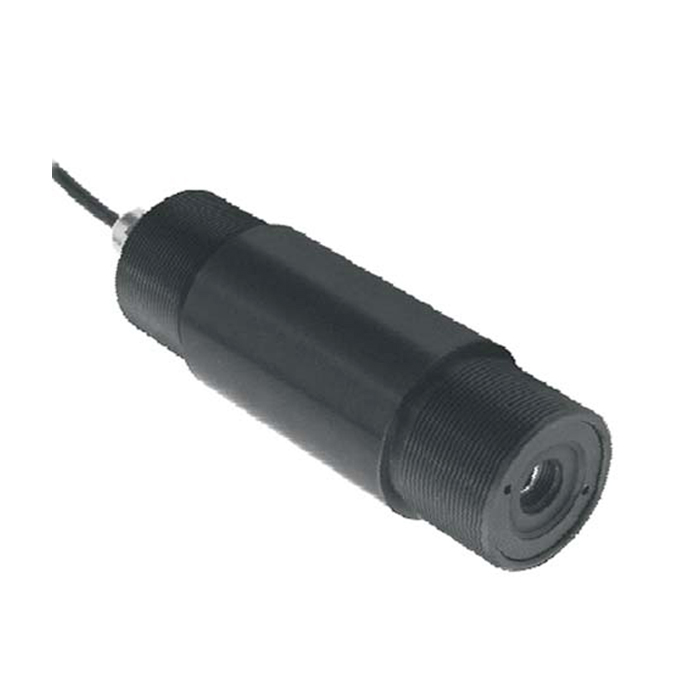

  • Digital Two-wire Loop Powered Infrared Temperature Sensor
Mouse over image to zoom
Share:

Product Specification

PSC-CX
Digital, two wire, loop powered infrared temperature sensor for OEM applications

PSC-CX Infrared Temperature Sensor Description
The PSC-CS self-Contained, 2-wire loop powered IR temperature sensor with 4-20 mA output features:
? High-performance, great value
? Simple 2-wire installation
? Wide range of -30°C to 900°C (adjustable with PSC Connect Software)
? Optical resolution of 22:1
? Optional USB programming interface
? Alarm output (0-30 V / 500 mA)
? Real-time 2-wire output and digital communication
? Versatile power requirements: 5-30 VDC

PSC-CX Infrared Temperature Sensor Specifications

General Specifications
Environmental rating
IP 65 (NEMA-4)
Ambient temperature
-20 - 75°C
Storage temperature
sensing head: -40 - 85°C
Relative humidity
10-95%, non condensing
Vibration
IEC 68-2-6: 3 G, 11-200 Hz, any axis
Shock
IEC 68-2-27: 50 G, 11ms, any axis
Weight
350 g
Electrical Specifications
Outputs/analog
4 - 20 mA
Output/Alarm
0-30 V/ 500 mA (open collector)
Outputs/digital (optional)
USB
Loop impedances
max. 1000 Ω
Cable length
8 m
Power supply
5 - 30 V DC
Measurement Specifications
Temperature range (scalable via software)
-30 - 900°C
Spectral range
8 -14μm
Optical resolution
22:1
CF-Optics (optional)
0.6mm @10 mm
System accuracy (at ambient temperature
23±5°C and object temperture >20°C)
±1% or ±1.4°C
Repeatability (at ambient temperature
23 ±5°C and object temperture >20°C)
±0.5% or ±0.7°C
Temperature resolution
0.1°C
Exposure time (90% signal)
150ms
Emissivity/Amplification (adjustable via soft-ware)
0.100 - 1.100
Transmissivity (adjustable via software)
0.100 - 1.000
Signal processing (parameter adjustable
only via softwre)
peak hold, valley hold, average; extended hold
function with threshold and hysteresis
