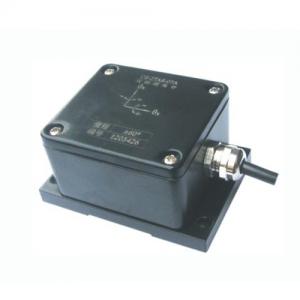

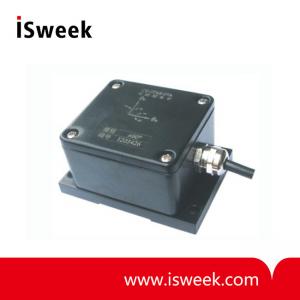

Dual Axis Inclinometer - CS-2TAS-07A
? Input Voltage: 8 ~ 26VDC
? Power current: <5mA
? Interface Type: RS485
? Baud Rate: 9600bps
? Data Output Rate: 25Hz
? Measurement Range: ±10°(±60)
? Non-Linearity: ≤±0.05° (±0.1)
? Resolution: 0.04°
? Operating Temperature: -40℃ ~ +85℃
- Model Number: CS-2TAS-07A
- Data Sheet:
- Quantity:
- - +
Product Specification
CS-2TAS-07A Dual Axis Inclinometer
CS-2TAS-07A Dual Axis Inclinometer Description
CS-2TAS-07A digital Dual Axis Inclinometer is a sensor based on MEMS technology to measure the inclination of an object relative to a horizontal surface in a static environment. The two sensitive axes respectively experience the change of pitch Angle and roll Angle. The sensor has the characteristics of fast response, small volume, low cost and high reliability. Suitable for horizontal measurement, dip Angle measurement, mechanical equipment level measurement and construction equipment tilt.
|
Type |
CS-2TAS-07A |
|
Input Voltage |
8 ~ 26VDC |
|
Power current |
<5mA |
|
Interface Type |
RS485 |
|
Baud Rate |
9600bps |
|
Data Output Rate |
25Hz |
|
Measurement Range |
±10°(±60) |
|
Non-Linearity |
≤±0.05° (±0.1) |
|
Resolution |
0.04° |
|
Bias |
0.1° |
|
Bias Drift |
±0.2° |
|
Bandwidth |
5Hz |
|
Start-up Time |
<1s |
|
compensation temperature |
-40℃ ~ +85℃ |
|
Operating Temperature |
-40℃ ~ +85℃ |
|
Storage temperature |
-40℃ ~ +125℃ |
|
Electrostatic discharge immunity |
GB/T 17626.2—1998 4 Level |
|
RF electromagnetic field immunity |
GB/T 17626.3—1998 3 Level |
|
The pulse magnetic field immunity |
GB/T 17626.9—1998 5 Level |
|
Power frequency magnetic field immunity |
GB/T 17626.8—1998 5 Level |
|
Weight |
<500g |
|
Size |
82×58×43mm |
