Single Axis Inclinometer - CS-TAS-05/06

? ?Input Voltage: 10 ~ 30VDC
? ?Measurement Range : ±180°
? ?Non-Linearity : 0.1%FS
? ?Resolution : 0.01°
? ?Start-up Time: <1s
? ?Operating Temperature: -40℃ ~ +70℃
? ?Storage temperature: -40℃ ~ +125℃
? ?Weight: <250g
? ?Size: 60 x 60 x 30mm

  • Model Number: CS-TAS-05/06
  • Data Sheet: Date Sheet File
Quantity:
- +

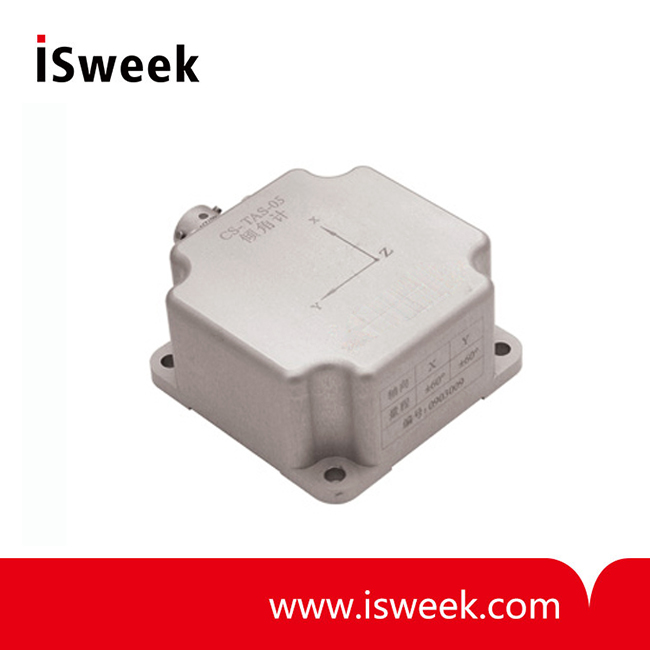

  • Single Axis Inclinometer
  • Single Axis Inclinometer
Mouse over image to zoom
Share:

Product Specification

CS-TAS-05/06 Single Axis Inclinometer Features
??± 180 ° measurement range
??High precision temperature compensation

CS-TAS-05/06 Single Axis Inclinometer?Main Application Areas
??Platform Control
??Leveling Construction Machinery

CS-TAS-05/06 Single Axis Inclinometer?Main Specifications

Type

CS-TAS-05

CS-TAS-06

Electrical Characteristics?

Input Voltage

10 ~ 30VDC

10 ~ 30VDC

Power current

<40mA

<50mA

Output

RS-485

4-20mA

Baud Rate

19200bps

－

Data Output Rate

25Hz

－

Performance?

Measurement Range

±180°

Non-Linearity

0.1%FS

Resolution

0.01°

Bias

0.1°

12±0.1 (mA)

Bias Drift

0.1°

Bandwidth

5Hz

Start-up Time

<1s

Environmental Characteristics

Operating Temperature

-40℃ ~?+70℃

Storage temperature

-40℃ ~?+125℃

Physical Characteristics?

Weight

<250g

Size

60 x 60 x 30mm
