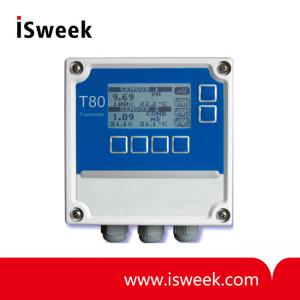

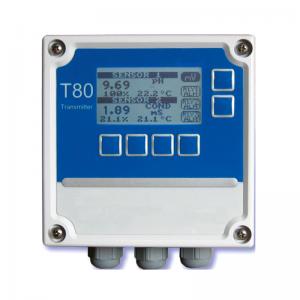

Dual Channel Transmitter for Water Quality Measurement - T80

? Single or dual channel, measures pH, ORP, DO, Specific Ion, Turbidity, Conductivity or Resistivity
? Graphic LCD Display: Easy to Read Graphical and Numerical Information
? Simple Menu Structure: Intuitive, Easy to Navigate and Configure
? Use with ECD Digital Intelligent Sensors that are factory calibrated sensors and store data
? 4-20 mA output with MODBUS RTU and Alarm Relays
? HART communication

Model Number: T80
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Measure pH, ORP, Specific Ion, Dissolved Oxygen, Turbidity, Conductivity or Resistivity with Model S80 Intelligent Sensors

T80?Dual Channel Transmitter for Water Quality Measurement?Description
The?Model T80 Universal Transmitter is a single or dual channel transmitter designed for the continuous measurement of pH, ORP, pION, Dissolved Oxygen, Turbidity, Conductivity or Resistivity in a general purpose industrial environment. The Model T80 transmitter digitally communicates with any ECD Model S80 Intelligent Sensor, automatically configuring the transmitter's menus and display screens to the measured parameter. The same transmitter can be used for any of the measurements, i.e. plug an S80 Conductivity Sensor into a Model T80 pH transmitter and it will automatically reconfigure into a conductivity transmitter. There is no longer any need to inventory multiple instrument types, the one Model T80 transmitter will automatically configure to any of the listed measurements.

T80?Dual Channel Transmitter for Water Quality Measurement?6 Point Advantage
1. Universal Transmitter: single or dual channel, measures pH, ORP, DO, Specific Ion, Turbidity, Conductivity or Resistivity
2. Graphic LCD Display: Easy to Read Graphical and Numerical Information
3. Simple Menu Structure: Intuitive, Easy to Navigate and Configure
4.?Use with ECD Digital Intelligent Sensors that are factory calibrated sensors and store data
5. 4-20 mA output with MODBUS RTU and Alarm Relays: Flexible configurations for all applications
6. HART^? communication

T80?Dual Channel Transmitter for Water Quality Measurement?Specifications

Input Specification
?Digital protocol, all ECD S80 sensors, Liquid, Gas, Process sensors? ?(Optional analog to digital input board for mV sensors)
Input Ranges
?pH	-1.00 - 15.00 pH
?ORP	-1500 - +1500 mV
?pION	000.1 - 999.9, Auto?Ranging: ppb ? ppm??ppthousand
?Dissolved Oxygen	000.1 - 999.9 Auto?Ranging: ppb,ppm, %?SAT, mg/L
?Conductivity	0.055 μS - 2.00S Auto?Ranging: μS, mS, S
?Resistivity	0.001 - 20.00 meg-ohms
?Turbidity	000.0 - 4000NTU Auto?Ranging: NTU, FNU,?mg/L, ppm, % Solids
?Temperature	-30°C - 140°C
Accuracy
?pH	0.02 pH
?ORP	± 1 mV
?pION	Specific for ion type
?Dissolved Oxygen	2% of calibrated range
?Conductivity	2% of calibrated range
?Resistivity	2% of calibrated range
?Turbidity	4% of calibrated range
?Temperature	± 0.3°C
Enclosure
?Polycarbonate, NEMA 4X, weatherproof, ? DIN,??(L x W x D) 5.7" x 5.7" x 3.5" (14.4cm x 14.4cm x 9.0cm)
Environmental Conditions
?Ambient Temperature	-20°C - 70°C
?Storage Temperature	-30°C - 85°C
?Rela0ve Humidity	0 - 90% NC
Display
?128 x 64 pixels (2.75" x 1.5") LCD, Black/Grey background on loop powered instruments,? ?Blue/White background LED backlight on 100-240 VAC and 24 VDC powered instruments
Input Power
?Code?-0	Loop powered, 24 VDC, 600 Ω?maximum load (18-36VDC @ 35?mW minimum)
?Code -1	24 VDC (18-36 VDC @ 250 mW?minimum)
?Code -2	100-240 VAC, 50/60 Hz, 4W
Outputs
?4-20 mA output (standard), Fault?Condition: 3.5 mA, 22 mA or none
?Modbus RTU (standard)
?HART^? (optional)
?Alarm Relays (Optional) Three (3) SPDT, form 1C, 250 VAC, 3 Amp? ?resistive maximum relays, user configurable as Hi/Lo or Fault alarms
Shipping
?Size	8" x 8" x 5"?(20.5 x 20.5 x 12.7 cm)
?Weight	1.6 lbs. (0.75 kg)
