Frequency Output Temperature and Humidity Sensor - HTF3226LF

? Full Lead free product
? Calibrated within +/-5% @55%RH
? Small size and very cost effective
? Miniature connector (JST)
? 10kOhms +/-3% NTC temperature sensor (1% optional)
? The best combination of cost effectiveness and performance
? Stable, linear proportional frequency output from 10% to 95%RH
? Stable and reproducible characteristics with temperature
? High reliability and long term stability

  • Model Number: HTF3226LF
  • Data Sheet: Date Sheet File
Quantity:
- +

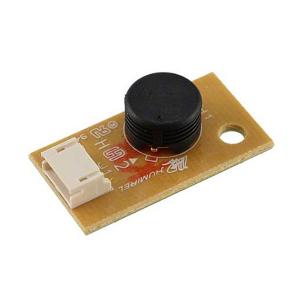

  • Frequency Output Temperature and Humidity Sensor

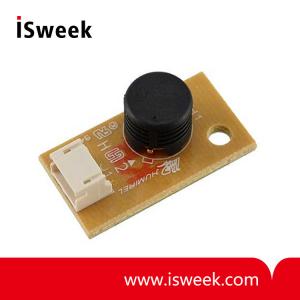

  • Frequency Output Temperature and Humidity Sensor
Mouse over image to zoom
Share:

Product Specification

HTF3226LF Temperature and Humidity Sensor DESCRIPTION
Based on the rugged HS1101LF humidity sensor, HTF3226LF is a dedicated humidity and temperature transducer designed for OEM applications where a reliable and accurate measurement is needed. It features a miniature connector for easy, cost-effective mechanical mounting. Direct interface with a micro-controller is made possible with the module’s linear frequency output.

HTF3226LF Temperature and Humidity Sensor FEATURES
? Full Lead free product
? Calibrated within +/-5% @55%RH
? Small size and very cost effective
? Miniature connector (JST)
? 10kOhms +/-3% NTC temperature sensor (1% optional)
? The best combination of cost effectiveness and performance
? Stable, linear proportional frequency output from 10% to 95%RH
? Stable and reproducible characteristics with temperature

? High reliability and long term stability

Humidity Sensor Specific Features

? Instantaneous de-saturation after long periods in saturation phase
? Fast response time
? High resistance to chemicals
? Not affected by water immersion
? Patented solid polymer structure

Temperature Sensor Specific Features

? High quality thermistor
? Stable
? High sensitivity

HTF3226LF Temperature and Humidity Sensor APPLICATIONS
? Printers
? Home Appliance


HTF3226LF Temperature and Humidity Sensor PERFORMANCE SPECS MAXIMUM RATINGS

Ratings

Symbol

Value

Unit

Storage Temperature

Tstg

-40 to 85

Storage Humidity

RHstg

0 to 100

% RH

Supply Voltage (Peak)

Vs

7

Vdc

Humidity Operating Range

RH

0 to 99

% RH

Temperature Operating Range

Ta

-30 to 85


HTF3226LF Temperature and Humidity Sensor ELECTRICAL CHARACTERISTICS

 (Ta=25°C, Vs=5Vdc +/-5%, RL>100k? unless otherwise stated)

Humidity Characteristics

Symbol

Min

Typ

Max

Unit

Humidity Measuring Range

RH

1


100

%RH

Relative Humidity Accuracy (0 to95% RH)

RH


+/-5

+/-10

%RH

Supply Voltage

Vs

4.75

5.00

5.25

Vdc

Nominal Output @55%RH

Fout

8670

8750

8830

Hz

Current consumption

Ic



0.1

mA

Temperature Coefficient (0 to 60°C)
Tcc

-0.2

%RH/°C

Average Sensitivity from33% to75%RH

?Fout/?RH

-13

-14

-16

Hz/%RH

Recovery time after 150 hours of condensation

tr


10


s

Humidity Hysteresis




+/-1

%RH

Long Term Stability

T


+/-0.5


%RH/yr

Time Constant (at 63% of signal, static) 33% to 76%RH

τ



10

s


Temperature Characteristics

Symbol

Min

Typ

Max

Unit

Nominal Resistance @25°C

R


10


k?

Beta value: B25/100

β

3600

3730

3800


Temperature Measuring Range

Ta

-30


80

°C

Nominal Resistance Tolerance @25°C

RN


2

%

Beta Value Tolerance

β


3


%

Response Time

τ


10


s
