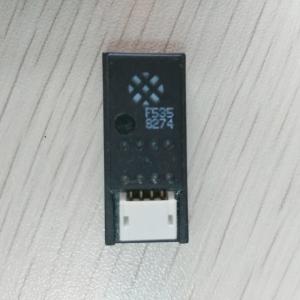

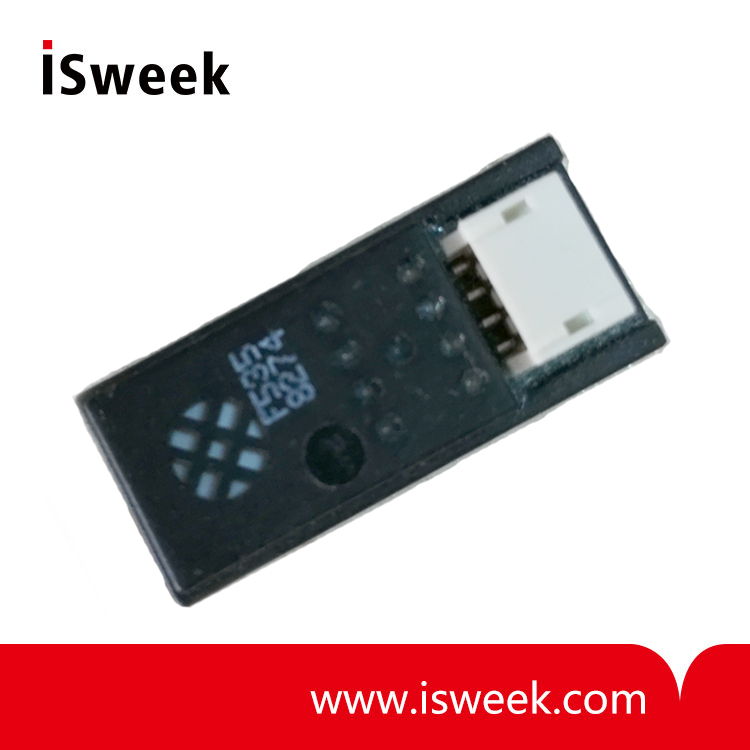

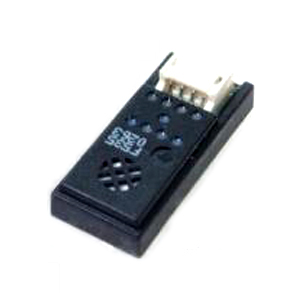

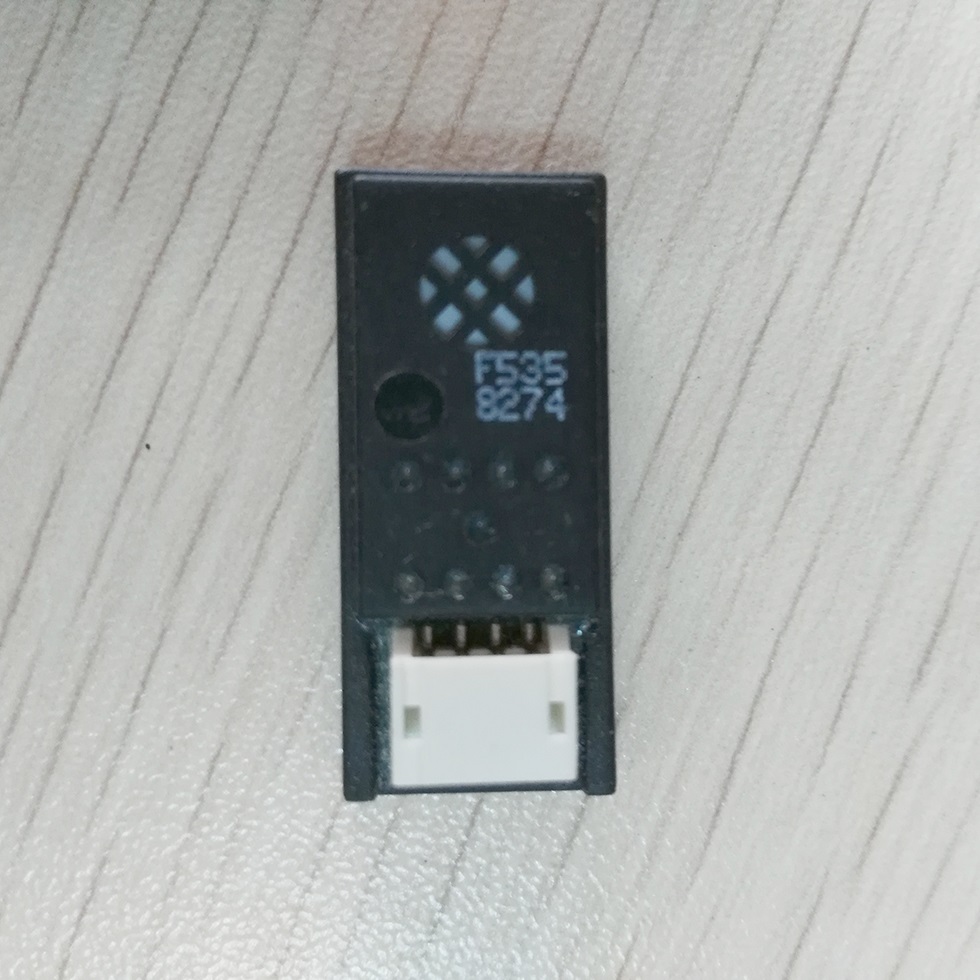

Humidity and Temperature Sensor Module - HTG3535CH

? Voltage Supply: 5 Vdc
? Nominal Output @55%RH: 2.401~2.559 V
? Humidity Average Sensitivity: +26 mV/%RH
? Current consumption: 1.2 mA dc
? Humidity Measuring Range: 0~100 %RH
? Humidity Operating Range: 0~100%RH
? Temperature Operating Range: -40 ~110°C
? Housing 3 with PTFE membrane

Model Number: HTG3535CH
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HTG3535CH Humidity and Temperature Sensor Module DESCRIPTION
Based on the rugged HUMIREL humidity sensor, HTG3535CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3535CH is designed for high volume and demanding applications.

HTG3535CH Humidity and Temperature Sensor Module FEATURES
? Voltage Supply: 5 Vdc
? Nominal Output @55%RH: 2.401~2.559 V
? Humidity Average Sensitivity: +26 mV/%RH
? Current consumption: 1.2 mA dc
? Humidity Measuring Range: 0~100 %RH
? Humidity Operating Range: 0~100%RH
? Temperature Operating Range: -40 ~110°C
? Suitable for small bulk assembly
? Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
? Full interchangeability. Better than +/-3%RH and +/-0.25°C
? Humidity calibrated within +/- 3% RH @ 55% RH
? Temperature measurement through NTC direct output
? Demonstrated reliability and long term stability
? Reliability not affected by repeated condensations

HTG3535CH Humidity and Temperature Sensor Module APPLICATIONS
? Automotive
? Home Appliance
? Printers
