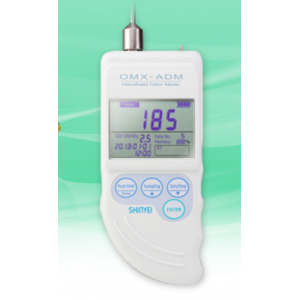

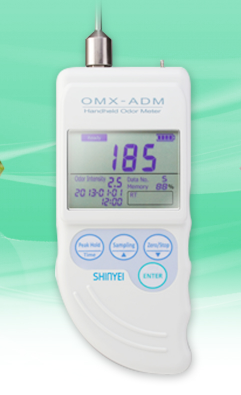

日本神榮 Handheld Odor Meter - OMX-ADM

Display odor strength level in numeric values.
Display odor intensity which is converted into ammonia concentration.
Detect odor in manufacturing and converting factories.
Measure pet odor and smell of excrement.

Model Number: OMX-ADM
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

OMX-ADM Handheld Odor Meter application：

Handheld Odor Meter OMX-ADM is appropriate for detecting pet odor and putrid smell, checking the effect of deodorization before and after cleaning in hospitals and nursing houses.

Display odor strength level in numeric values.
Display odor intensity which is converted into ammonia concentration.
Detect odor in manufacturing and converting factories.
Measure pet odor and smell of excrement.
Check the effect of deodorization before and after cleaning at hospitals and nursing houses.
Measure garbage odor level in garbage disposal plants, restaurants and fish markets.
Monitor smell of compost in livestock plants.

Odor Intensity：

Displayed value is converted into ammonia odor intensity by the scale of 2.5 to 5.0 based on odor concentration of measurement environment.

*Odor Intensity is determined based on Japanese Regulation, which allows to evaluate odor level by 6 scales.

OMX-ADM Handheld Odor Meter parameter：

Model Name	OMX-ADM
Detection Method	Two Semiconductor Gas Sensors
Sampling Method	Continuous Sampling with Built-in Air Pump
Object Gas	Hydrogen Sulfide, Methyl Mercaptan, Ammonia, etc
Odor Strength Level	0 - 999
Classification	Odor Intensity 2.5～5.0
Power	4×AASize Alkaline Batteries or AC Adaptor *Battery life for continuous measurement is approx. 7 hours.
Memory Capacity	Up to 32,732 Data
Memory Partition	Up to 511 Files
Operating Temperature	0 ～ 40℃(32-104F) *No Dew Condensation
Storage Temperature	-10 ～ 50℃(14-122F) *No Dew Condensation
Dimensions	W74 X L167.5 X D35mm approx.
Weight	250g approx. (Without Batteries)
Accessories	USB Cable, Air Purifying Unit, Activated Carbon, 4×AA Size Alkaline Batteries, AC Adaptor
