Handheld Particle Counter 0.3 μm @ 0.1 CFM - 8303

? Size Range: 0.3 to 25μm
? Flow rate: 0.1 CFM (2.83 LPM)
? Battery Run Time: 10 hours
? Count Alarms: 1 to 9,999,999 counts
? Operating Temperature: 41o to 104oF (5o to 40oC)
? Operating Humidity: 20% to 95% non-condensing
? Warranty: 1 Year. Extended warranties available.

Model Number: 8303
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

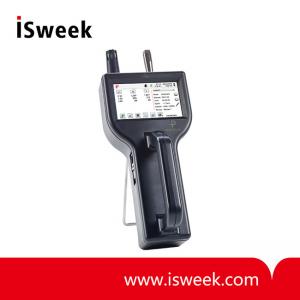

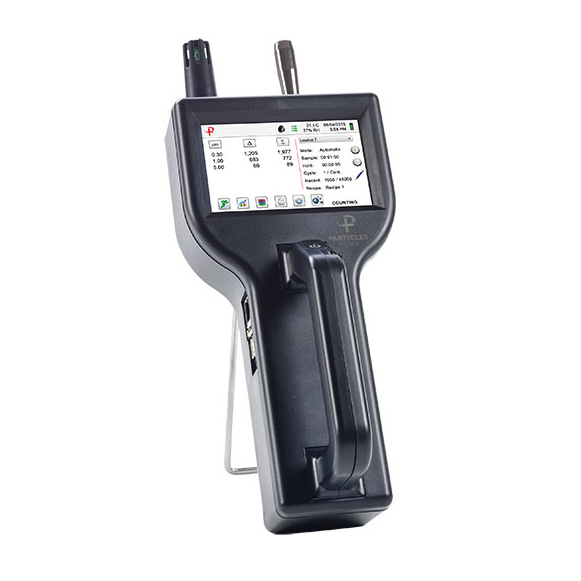

8303 Handheld Particle Counter
The 8303 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 3 user-selectable size channels as well as (optional) temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software. The 8303 mass concentration mode approximates density in μg/m3 and allows for density and refractive index corrections to ensure accuracy.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8303 ensures compliance with an on-board pulse height analyzer.

8303 Handheld Particle Counter Features and Benefits
? Measures 0.3 μm to 25.0 μm
? 0.1 CFM (2.83 LPM) flow rate
? Long life laser diode technology
? Measures up to 3 channels of simultaneous data
? Approximates mass concentration in μg/m3 with density and refractive index corrections
? Integrated handle for one-handed operation
? Large easy-to-use icon driven color touch screen display
? Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
? Annotation function allows user to save 32 character notations to a sample record
? Real-Time Meter for detecting particle contamination sources
? Easy configuration and transferable from instrument to instrument
? Connect using USB or (optional) Ethernet, Wireless 802.11 b/g
? Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
? Internal audible alarm
? User-definable reports
? User-selectable channel sizes
? Complies with ISO 21501-4 and JIS B9921 standards
? Easy to clean and wipe down with minimal particle traps
? Seamless integration into a facility monitoring system
? Lightweight high-impact injection molded plastic enclosure
? 1 year warranty. Extended warranties available

8303 Handheld Particle Counter Optional Features and Benefits
? Temperature and relative humidity probe
? Ethernet, Wireless 802.11 b/g, RS485 or RS232 output
? Additional 3 size channels
? External printer

8303 Handheld Particle Counter Specifications

Size Range	0.3 to 25μm
Size Channels	Factory calibrated at 0.3, 0.5 and 5.0 μm with user-selectable middlesize channel
Flow rate	0.1 CFM (2.83 LPM)
Concentration Limit	4,000,000 Particles/ft3 @ 5% coincidence loss
Battery Run Time	10 hours
Light Source	Long life laser diode
Counting Efficiency	50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Zero Count	<1 count / 5 minutes (<2 particles/ft3) (per ISO 21501-4 & JIS)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3" (10.9 cm) WQVGA (480x272) color touch screen
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41o to 104oF (5o to 40oC) / 20% to 95% non-condensing
Storage Conditions	32o to 122oF (0o to 50oC) / Up to 98% non-condensing
Warranty	1 Year. Extended warranties available.
