Honeywell Air flow Sensors - AWM5104VN
Signal Conditioning: Amplified;
Flow/Pressure Range: 0 SLPM to 20.0 SLPM;
Port Style: Threaded, ? NP
Linear voltage output
Remote mounting capability
Active laser trimming improves interchangeability
Medical respirators and ventilators
Oxygen concentrators
Leak detection equipment
- Model Number: AWM5104VN
- Data Sheet:
- Quantity:
- - +
Product Specification

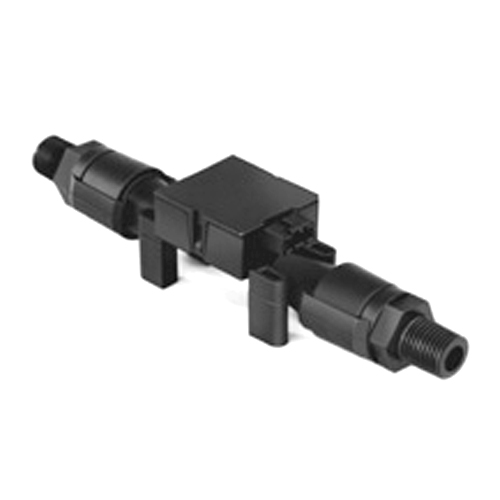

Honeywell Air flow Sensors -AWM5104VN Description
AWM5000 Series Microbridge Mass Air flow Sensors feature a Venturi type flow housing. They measure flow as high as 20 standard liters per minute (SLPM) while inducing a maximum pressure drop of 2.25" H2O. The microbridge chip is in direct contact with the flow stream, greatly reducing error possibilities due to orifice or bypass channel clogging.
Honeywell Air flow Sensors -AWM5104VN Features
● Linear voltage output
● Venturi design
● Remote mounting capability
● Active laser trimming improves interchangeability
● Separate gas calibration types:
-Ar (argon)
-N2 (nitrogen) or
-CO2 (carbon dioxide)
Honeywell Air flow Sensors -AWM5104VN Potential Applications
● Damper control for heating, ventilation, and air conditioning systems
● Gas analyzers
● Low vacuum control
● Process control
● Medical respirators and ventilators
● Oxygen concentrators
● Leak detection equipment
● Vent hoods
● Anesthesia control
● Gas metering
● Gas chromatography

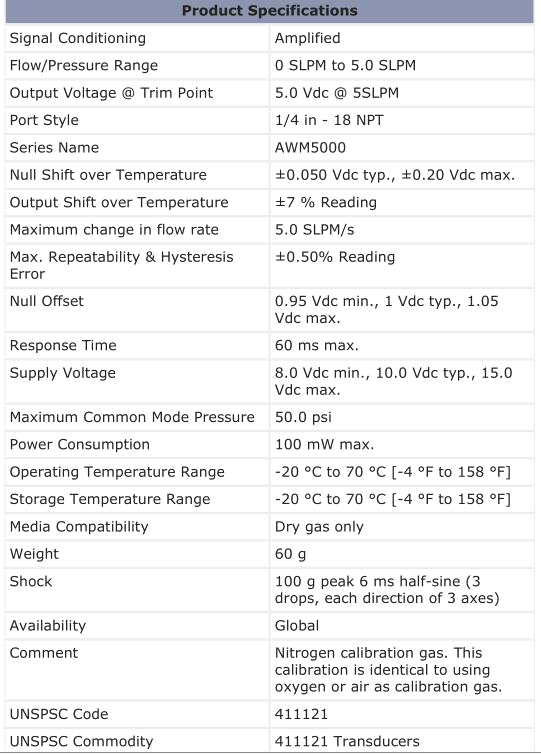

Honeywell Air flow Sensors -AWM5104VN Product Specifications
