HYDRA Ammonium Analyzer - HYDRA NH4-N

? NH4+-N? Measurement:? 0.01 to 14,000 ppm
? ?Potassium Measurement:? 0.01 to 40,000 ppm?
? pH Measurement:?0 to 14 pH?
? Temperature Measurement: 0°C to 100°C (32°F to 212°F)
? Operating Temperature: 0°C to 50°C (32°F to 122°F)
? Response Time: T90 1 minute

  • Model Number: HYDRA NH4-N
  • Data Sheet: Date Sheet File
Quantity:
- +

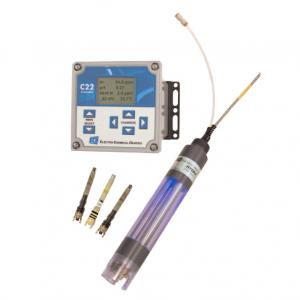

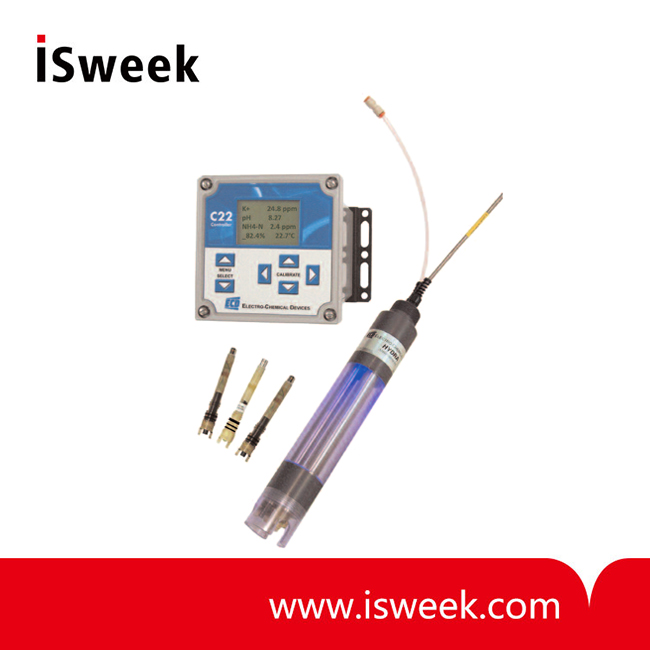

  • HYDRA Ammonium Analyzer
  • HYDRA Ammonium Analyzer
Mouse over image to zoom
Share:

Product Specification

HYDRA NH4-N Ammonium Analyzer Description
The HYDRA? Ammonium Analyzer measures the concentration of dissolved ammonium as nitrogen (NH4+-N) in water. The sensor uses three electrodes to determine the NH4+-N concentration, an Ammonium Ion Electrode, a Potassium Ion Electrode and a pH Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams and wells as well as wastewater treatment in aeration basins and effluent.

The Ammonium Ion Electrode provides the primary measurement. Any potassium ion in the sample generates a positive interference in the measurement, due to its similar size and charge to the ammonium ion. A Potassium Ion Electrode measures the amount of potassium ion present in the sample and HYDRA C22 Analyzer subtracts the appropriate amount of signal from the Ammonium Measurement.

HYDRA NH4-N Ammonium Analyzer Features
? Ammonium ISE electrode
? K+, pH and Temp. electrodes
? Rugged PVC design
? Integral Spray Head Cleaner
? Internal Signal Conditioning

HYDRA NH4-N Ammonium Analyzer Benefits
? Fast and Accurate Ammonium
? Measurement NH4+ or NH4+-N
? Fully compensated for pH, K+ interferences & Temperature
? Removable electrode guard for easy maintenance
? Clean sensor in situ with pressurized water or air
? Amplified signals allow up to 200 meters between Sensor and Analyzer

HYDRA NH4-N Ammonium Analyzer Specifications

Sensor
Sensor
Three Electrode system with spray cleaner, Ammonium ISE (NH4+-N)
is the primary measurement. The Potassium ISE and pH glass electrodes
are used to compensate the NH4+ signal. The Sensor is waterproof
with an ingress rating of IP 68.
Measurement Range
NH4+-N: 0.1 to 14,000 ppm
Operating Temperature
0°C to 50°C (32°F to 122°F)
Min/Max Flow Rate
Minimum 0.1 m/s
Maximum 3.0 m/s
We&ed Materials
PVC, PES, PVDF, PTFE, Viton, Glass, 316 SS
Accuracy
± 3% of reading, dependent on Calibration
Response Time
T90 1 minute
Electrode Life
ISEs: 4- 6 months, typical
pH electrode: 6-12 months, typical
C22 Analyzer
Measurements

    Ammonium:
0.01 to 14,000 ppm as NH4+-N
    Potassium:
0.01 to 40,000 ppm
    pH:
0 to 14 pH
    Temperature:
0°C to 100°C (32°F to 212°F)
Compensation

    pH:
4 - 10 pH
    Potassium:
0.1 to 1000 ppm
Display
2.5" X 1.75" backlit LCD, 4 lines of Text & Graphical
Enclosure
NEMA 4X, L x W x D: 5.7" x 5.7" x 7
Outputs
(2) 4-20 mA maximum load 800 ohms @ 24 VDC
Configured: 0.1 to 20 mg/l NH4+-N; 0 - 14 pH
Optionally up to (4) 4-20 mA outputs*
Input Power
110/220 VAC @ 50/60 Hz
Alarm Relay Ra%ngs
(2) SPDT 230 VAC/5A or 30 VDC/5A resistive max.
Relay(1) Spray Cleaner, Relay(2) Alarm
Optionally up to (8) Relays*

Part No.
Model and Product Description
1290030-1
HYDRA? NH4-N Sensor, complete, NH4, K+, pH, Temp, Spray Cleaner head and 30 #. cable
1290030-2
HYDRA? NH4-N Sensor, complete, NH4, pH, Temp, Spray Cleaner head and 30 #. cable (No K+ Sensor)
16KA2221.K100
HYDRA? C22 NH4-N Analyzer, K+ compensated, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays*
16KA2221.J100
HYDRA? C22 NH4-N Analyzer, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays* (No K+ compensation)

Part No.
Spare Parts and Accessories Description
2005083.VIT
Ammonium Electrode Cartridge (recommended spare)
2005034.VIT
Potassium Electrode Cartridge (recommended spare)
2005145.VIT
pH Electrode Cartridge (recommended spare)
3300854-1
Replacement Spray Nozzle
3501050-1
PVC Front Sensor Guard
2010445-1
Ammonium Calibration solution, NH4-N 1 ppm
2010446-1
Ammonium Calibration solution, NH4-N 100 ppm
2010443-1
Potassium Calibration solution, 1 ppm
2010444-1
Potassium Calibration solution, 100 ppm
2010100
pH 4 Buffer Calibration solution
2010101
pH 7 Buffer Calibration solution
1000300-1
4-20 mA USB Data Logger
