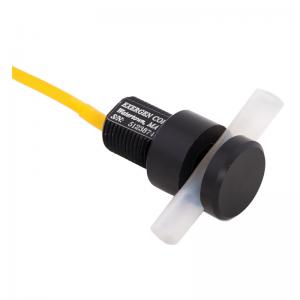

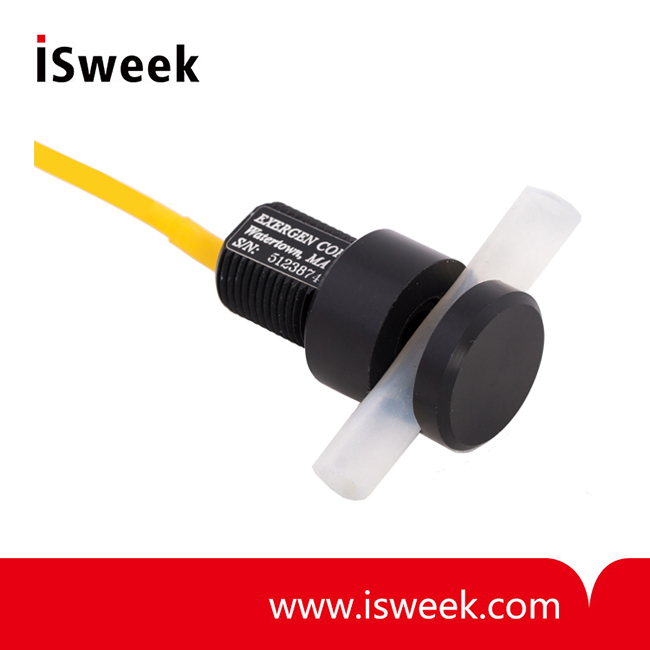

Infrared Temperature Sensors - IRt/c.01HB

? Sensing Range?: -50 to 550°F (-45 to 290°C)?
? Ambient Temperature: 0 to 160°F (-18 to 70°C)?
? Field of View?: approximately 1:1 (60°)?
? Repeatability 0.02° F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size?: .3" (8mm)?
? Spectral Response?: 6.5 to 14μm?
? Output Impedance?: 3 Kohms approx?
? Response Time?: 100 Milliseconds?

Model Number: IRt/c.01HB
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.01HB?Infrared Temperature Sensors?Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02° F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.01HB?Infrared Temperature Sensors?Technical Data

Sensing Range	-50 to 550°F (-45 to 290°C)
Ambient Temperature?Range	0 to 160°F (-18 to 70°C)
Optimum Range?Selection	32 to 122°F (0 to 50°C) (Human body range)
Field of View	approximately 1:1 (60°)
Minimum Spot Size	.3" (8mm)
Spectral Response	6.5 to 14μm
Tubing Size Range	0.3 to 1.0" (8 to 25mm) O.D.
Output Impedance	3 Kohms approx
Response Time	100 Milliseconds
Dimensions	2.0" x 1.0" Dia. (51 x 25mm)
Housing	Hight strength ABS, hermetically sealed, exceeds NEMA 4,4X;? IP65, 67, intrinsically safe
Cable	Thermocouple extension grade, PVC jacket,?unschielded
Weight	1.4oz. (40 grams) with cable
