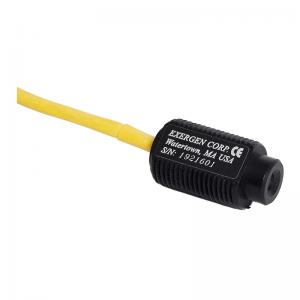

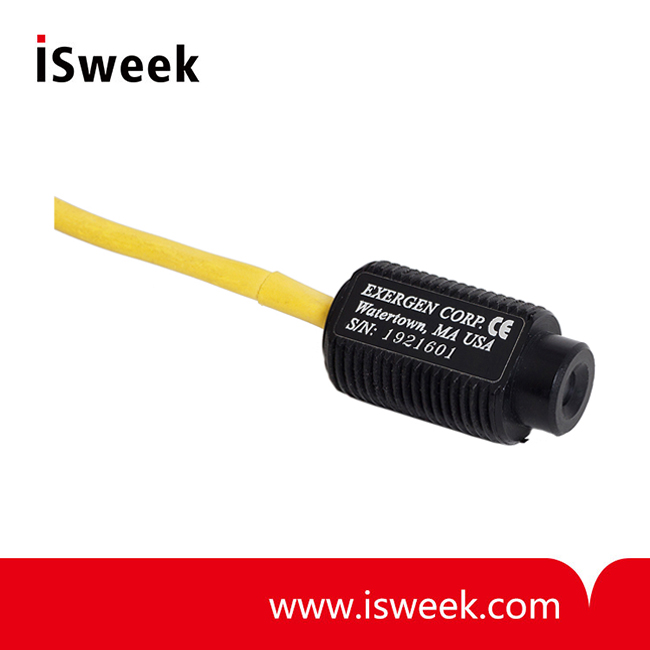

Infrared Temperature Sensors - IRt/c.01Z

? Sensing Range?: -50 to 550°F (-45 to 290°C)?
? Ambient Temperature?: 0 to 160°F (-18 to 70°C)?
? Field of View?: approximately 1:1 (60°)?
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size?: .3" (8mm)?
? Spectral Response?: 6.5 to 14μm?
? Output Impedance?: 15 to 40 Kohms approx?
? Response Time?: 100 Milliseconds?

Model Number: IRt/c.01Z
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.01Z Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.01Z Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 550°F (-45 to 290°C)
Ambient Temperature Range	0 to 160°F (-18 to 70°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 1:1 (60°)
Minimum Spot Size	.3" (8mm)
Spectral Response	6.5 to 14μm
Output Impedance	15 to 40 Kohms approx
Response Time	100 Milliseconds
Dimensions	3.25" x 1.18" Dia. (82.5 x 29.97mm), M30 x 1.5 thread
Housing	High strength ABS, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe. Two locknuts supplied
Cable	K type, thermocouple extension grade, PVC jacket, unschielded
Weight	1.4oz. (40 grams) with cable
Input Device Compatibility	It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, and sensor break detection should be set to 40 Kohm maximum.
