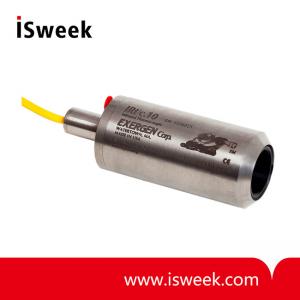

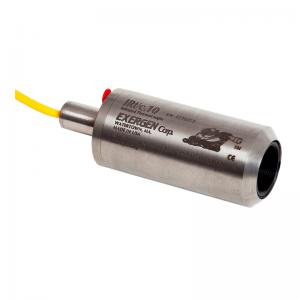

Infrared Temperature Sensors - IRt/c.10

? Sensing Range?: -50 to 1200°F (-45 to 650°C)?
? Ambient Temperature?: 0 to 400°F (-18 to 200°C)?
? Field of View?: approximately 10:1 (6°)?
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size?: .8" (20mm)?
? Spectral Response?: 6.5 to 14μm?
? Output Impedance?: 4 to 8 Kohms approx?
? Response Time?: 100 Milliseconds?

Model Number: IRt/c.10
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.10 Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.10 Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 1200°F (-45 to 650°C)
Ambient Temperature Range	0 to 400°F (-18 to 200°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 10:1 (6°)
Minimum Spot Size	.8" (20mm)
Spectral Response	6.5 to 14μm
Output Impedance	4 to 8 Kohms approx
Response Time	100 Milliseconds
Dimensions	3.76" x 1.375" Dia. (96 x 35mm)
Housing	Stainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, cable shield grounded to housing and electrically isolated from signal
Cable	Twisted shielded pair of base thermocouple material (K), 3ft (.9m) std lenght, Telfon sheated, reated to 392°F (200°C) continuous service
Weight	6.5oz. (184 grams) with cable
Air Purge	Built-in; designed for severe paint or ink environment; 3' (0.9 m) of tubing provided
