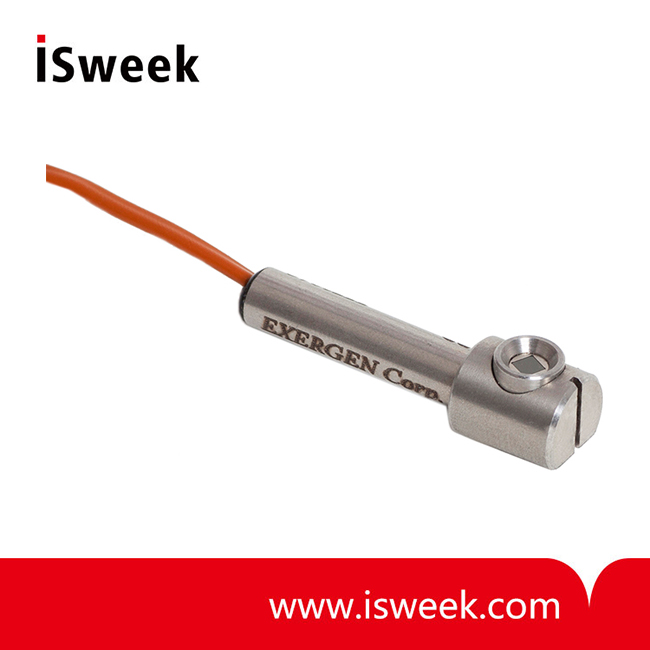

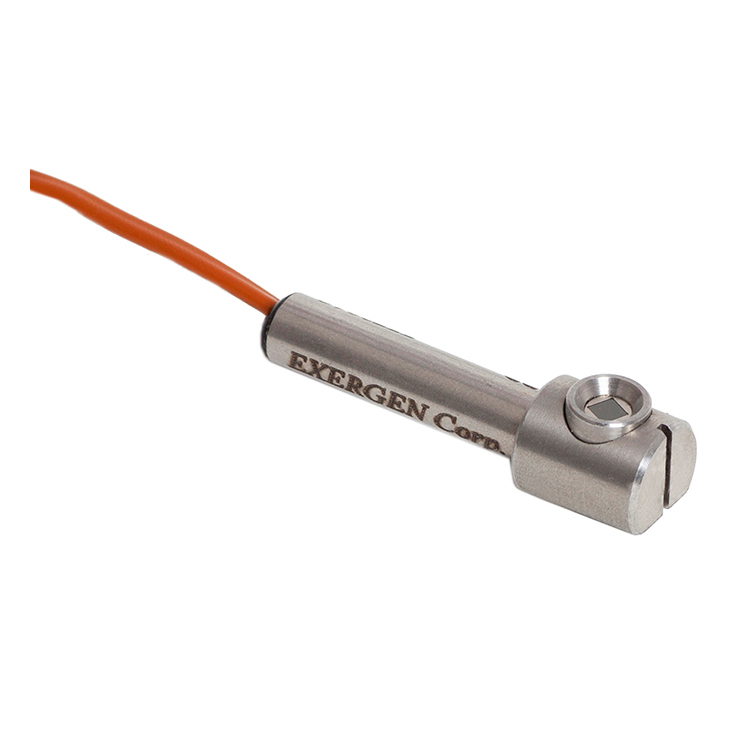

Infrared Temperature Sensors - Micro IRt/c.SV

? Sensing Range?: 0 to 975°F (-18 to 524°C)?
? Field of View?: approximately 1:2 (110°)?
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0003°C
? Minimum Spot Size?: .1" (3mm)?
? Spectral Response?: 5.5 to 20μm?
? Output Impedance?: 17 - 45 Kohms?
? Response Time?: 50 Milliseconds?

  • Model Number: Micro IRt/c.SV
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Temperature Sensors
  • Infrared Temperature Sensors
Mouse over image to zoom
Share:

Product Specification

Micro IRt/c.SV Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0003°C
? Small Size

Micro IRt/c.SV Infrared Temperature Sensors Technical Data

Sensing Range
 0 to 975°F (-18 to 524°C)
Ambient Temperature Range
 -29 to 185°F (-20 to 85°C) permanent
-29 to 212°F (-20 to 100°C) non permanent
Optimum Range Selections
 Eight models per t/c type (see Temperature selection Chart)
Field of View
 approximately 1:2 (110°)
Minimum Spot Size
 .1" (3mm)
Spectral Response
 5.5 to 20μm
Output Impedance
 17 - 45 Kohms
Response Time
 50 Milliseconds
Dimensions
 See diagram above
Housing
 Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67
Cable
 3 feet of unsheilded, duplex insulated, type K, 24
AWG, PFA jacket rated to 500°F (260°C) (Shielded
cable available upon request)
Weight
 Approximately 1oz. (30 grams) with cable
Input Device Compatibility
 It is recommended to use input devices with less than 1 nA
of leakage current to minimize offsets, and sensor break
detection should be set to 45 Kohm maximum.
