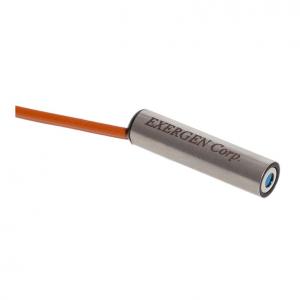

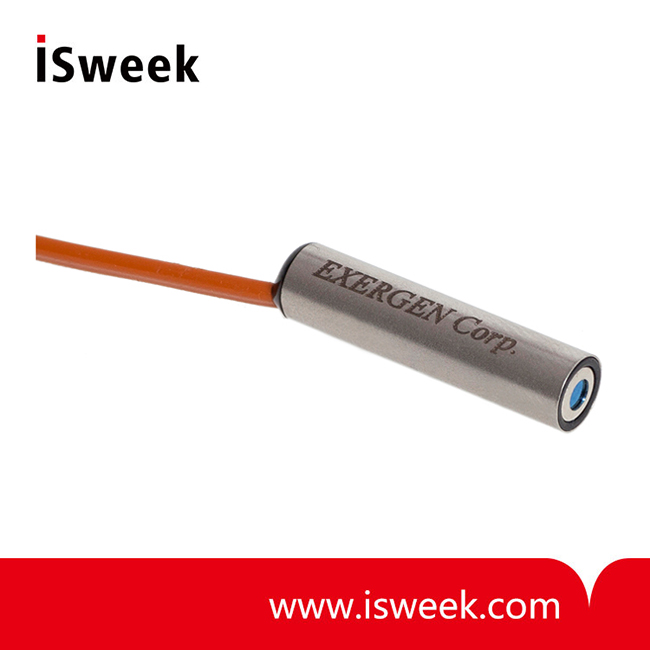

Infrared Temperature Sensors - Micro IRt/c

? Sensing Range: 0 to 975°F (-18 to 524°C)
? Field of View: approximately 1:2 (110°)
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0003°C
? Minimum Spot Size: .1" (3mm)
? Spectral Response?: 5.5 to 20μm?
? Output Impedance?: 17 - 45 Kohms?
? Response Time?: 50 Milliseconds?

Model Number: Micro IRt/c
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Micro IRt/c Infrared Temperature Sensors Features
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0003°C
? Small Size

Micro IRt/c Infrared Temperature Sensors Technical Data

Sensing Range	0 to 975°F (-18 to 524°C)
Ambient Temperature Range	-29 to 185°F (-20 to 85°C) permanent -29 to 212°F (-20 to 100°C) non permanent. Air Purge jacket available for cooling to 347°F (175°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 1:2 (110°)
Minimum Spot Size	.1" (3mm)
Spectral Response	5.5 to 20μm
Output Impedance	17 - 45 Kohms
Response Time	50 Milliseconds
Dimensions	0.25" (6.3mm) Dia. x 1.0" (25.4mm)
Housing	Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67
Cable	3 feet of unsheilded, duplex insulated, type K, 24 AWG, PFA jacket rated to 500° F (260°C) (Shielded cable available upon request)
Weight	Approximately 1oz. (30 grams) with cable
Input Device Compatibility	It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, and sensor break detection should be set to 45 Kohm maximum.
