MF5200 Series Oxygen Flow Meters - MF5212/MF5219
? Flow Range:
- MF5212: 0.3 ~ 200, 300 L/min
- MF5219: 0.8 ~ 600, 800 L/min
? Turn-down Ratio: 30:1
? Accuracy: ±(2.0+0.5 FS)%
? Repeatability: ±1.0%
? Max. Pressure: 1.0 MPa
? Operating Tenperature: -10 ~ +55℃
? Output: RS485 (Modbus)
- Model Number: MF5212/MF5219
- Data Sheet:
- Quantity:
- - +
Product Specification
MF5200 Series Oxygen Flow Meters General description
MF5200 series oxygen flow meters are specially designed for oxygen metering system in ahospital. These meters are operated with the standard industrial user interfaces (RS485), anduser defined alarm functions for better monitoring or control over the network.The off-the-shelf products (MF5212 and MF5219) are for gas flow measurement of 0 ~300 SLPM and 0 ~ 800 SLPM, respectively.
MF5200 Series Oxygen Flow Meters Features and Applications

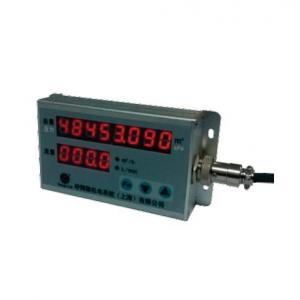

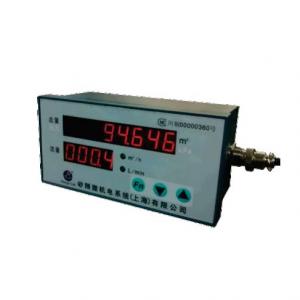

- Detachable display that can be placed away from the flow channelvia a specially designed cable
- LED display for both instant flow rate and flow accumulation
- Standard RS485 for remote data communication
- Hygienic stainless steel body ready for oxygen metering

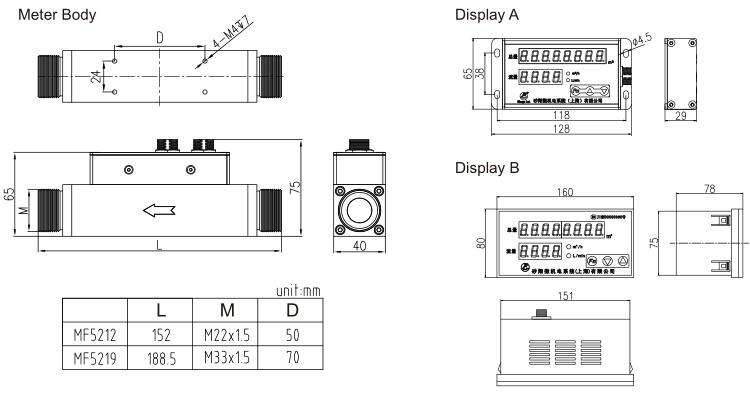

MF5200 Series Oxygen Flow Meters Mechanical Dimensions

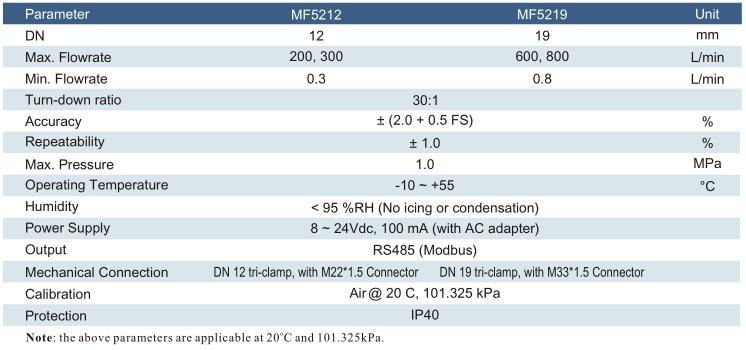

MF5200 Series Oxygen Flow Meters Specifications

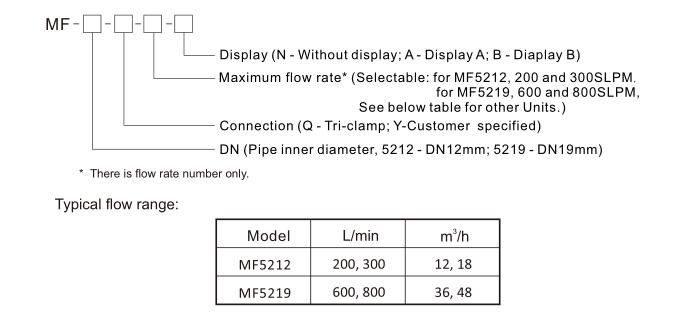

MF5200 Series Oxygen Flow Meters Production selection
