MF4000 Series Gas Flow Meters - MF4003/MF4008
? Flowrate Range:
- MF4003: 0 ~ 2, 3, 4, 5 SLPM
- MF4008: 0 ~ 10, 20, 30, 40, 50 SLPM
? Turn-down: 100:1
? Accuracy: ±(1.5+0.2 FS)%
? Repeatability: 0.25%
? Max. Pressure: 0.5 MPa
? Workting Tenperature: -10 ~ +55℃
? Output: Linear: Analog 0.5 ~ 4.5 Vdc; RS232, RS485
- Model Number: MF4003/MF4008
- Data Sheet:
- Quantity:
- - +
Product Specification
MF4000 Series Gas Flow Meters General description
MF4000 series mass flow meters are designed for applications where manifold flowmeasurements. The standard flow channels are 3 mm and 8 mm in diameter, respectively. Plastic finishing with an easy change of the mechanical adaptors enables applications at a lowcost and different environments. The meters can be used for process gas control,environmental samplers and many other industrial applications.
MF4000 Series Gas Flow Meters Features and Applications
- Designed for low gas flow in fixed flow channel of 3 mm and 8 mm, with accumulated flow register
- Compact design ready for manifold assembly
- Fast response time for solutions of critical applications
- Excellent for manifold process gas monitor and control
- Exchangeable mechanical connectors for easy installation at different applications
- Intrinsic safe enclosure

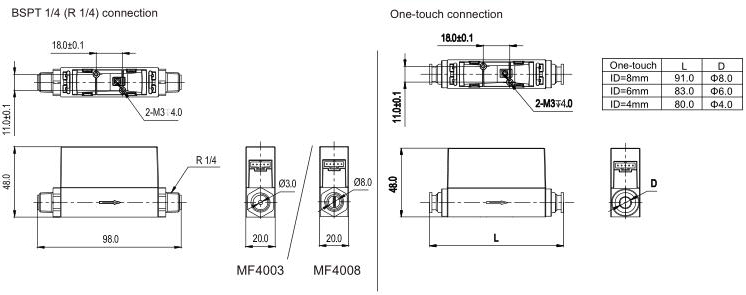

MF4000 Series Gas Flow Meters Mechanical Dimensions

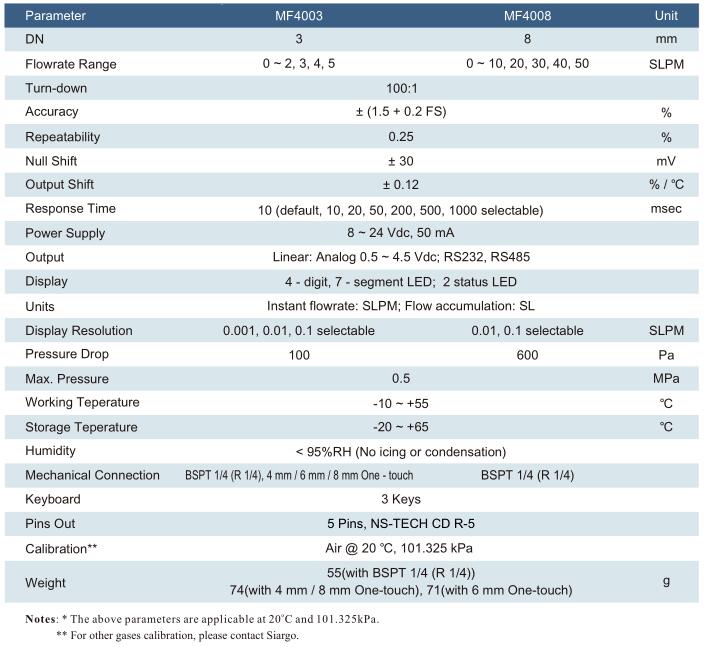

MF4000 Series Gas Flow Meters Specifications

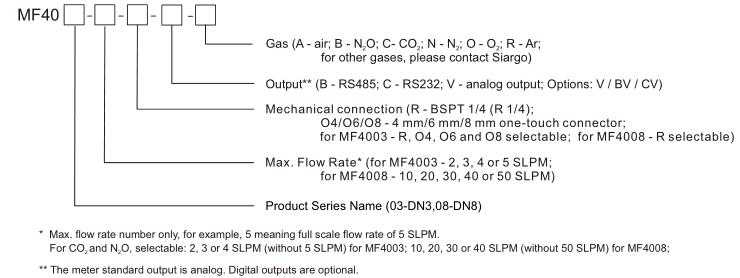

MF4000 Series Gas Flow Meters Product selection
