MF5700 Series Protable Gas Flow Meters - MF5706/MF5712
? Flow Range:
- MF5706: 0~ 10, 25 SLPM
- MF5712: 0 ~ 200 SLPM
? Turn-down Ratio: 30:1
? Accuracy: ±(2.0+0.5 FS)%
? Repeatability: 0.5%
? Resp?onse Time: ≤2 sec
? Output: RS485 (Optional)
- Model Number: MF5706/MF5712
- Data Sheet:
- Quantity:
- - +
Product Specification
MF5700 Series Protable Gas Flow Meters General description
MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AAbatteries. The portable design has excellent exchangeable mechanical adaptors, easy dataaccessible and user programmable capabilities. The internal data storage can also help forpurpose flow applications. ?
MF5700 Series Protable Gas Flow Meters Features and Applications
- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids
MF5700 Series Protable Gas Flow Meters Applications
? Mechanics
? Food
? Tobacco
? Chemistry
? Beverage
? Glass
??Agriculture
? Research
? Pharmaceutics
? Instrumentation

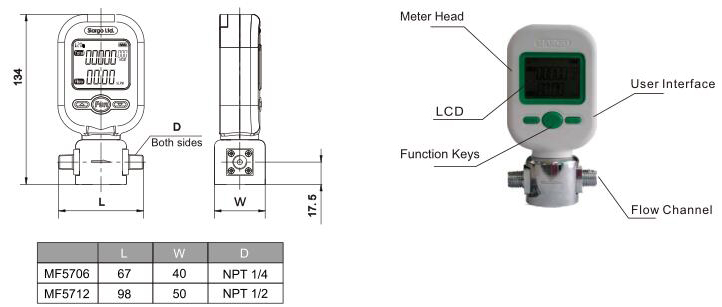

MF5700 Series Protable Gas Flow Meters Mechanical Dimensions???????

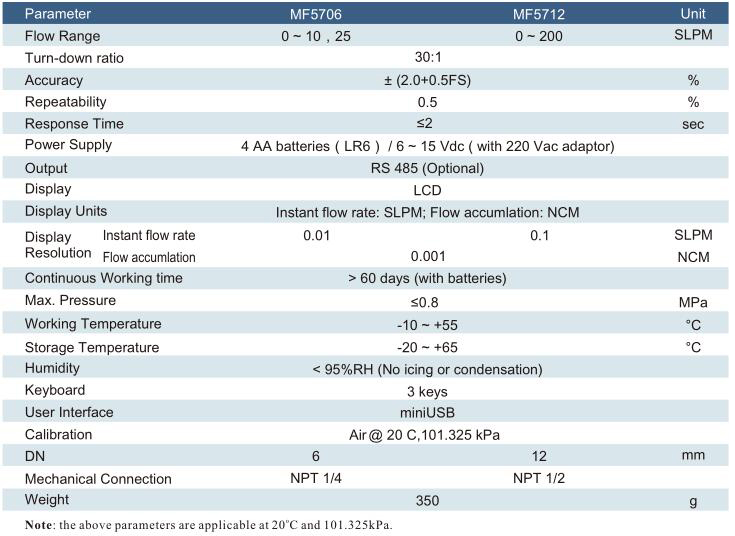

MF5700 Series Protable Gas Flow Meters Specifications
?

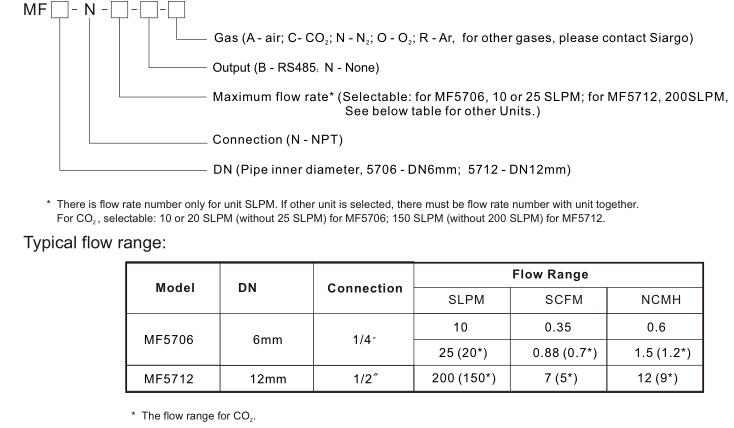

MF5700 Series Protable Gas Flow Meters Production selection
?
