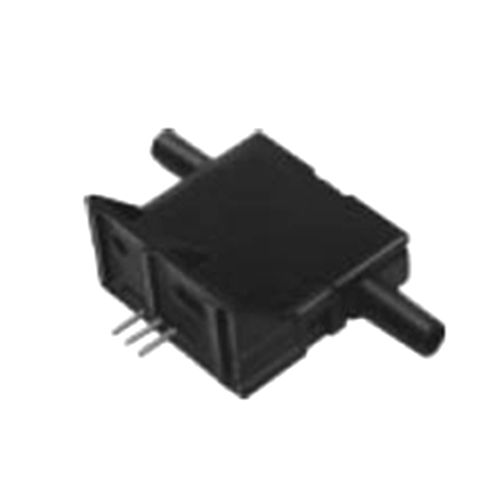

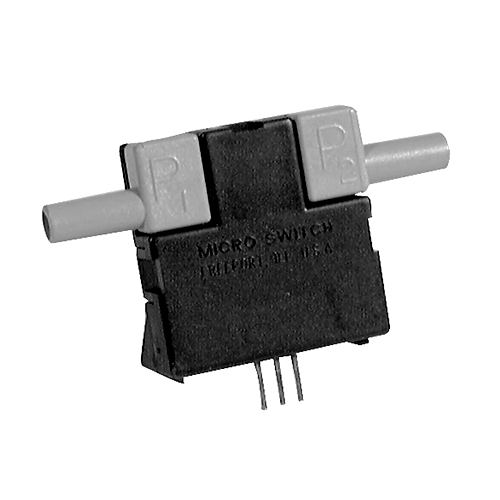

Microbridge Mass Airflow / Amplified Sensors - AWM3000 Series
● Laser trimmed for improved sensor interchangeability
● Flow sensing up to 1.0 SLPM
● Low differential pressure sensing
● Operating Temperature Range: ?25° to +85°C (?13° to +185°F)
● Weight: 10.8g
● Response Time (Typ.) :1 ms
● ower Consumption (Typ.): 50 mW
- Model Number: AWM3000 Series
- Data Sheet:
- Quantity:
- - +
Product Specification
Honeywell Airflow Sensors - AWM3000 Series Microbridge Mass Airflow/Amplified
Like the AWM2000 Series, the dual Wheatstone bridges control airflow mea-surement. The AWM3000 Series is ampli-fied; therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output.
Honeywell Airflow Sensors - AWM3000 Series Features
● Laser trimmed for improved sensor interchangeability
● Flow sensing up to 1.0 SLPM
● Low differential pressure sensing

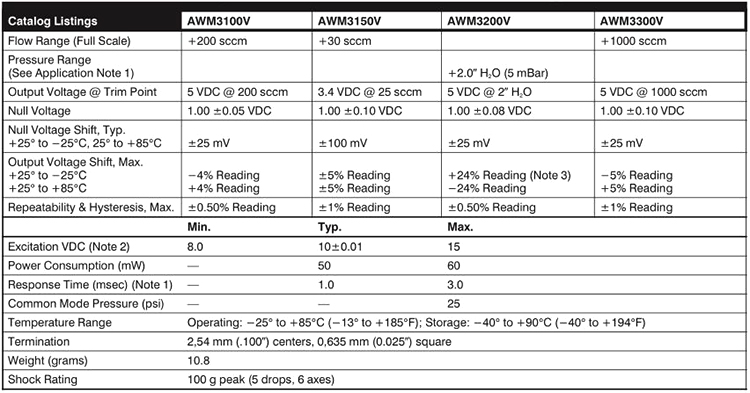

AWM3000 SERIES ORDER GUIDE (Performance Characteristics @ 10.01±0.01 VDC, 25℃)
