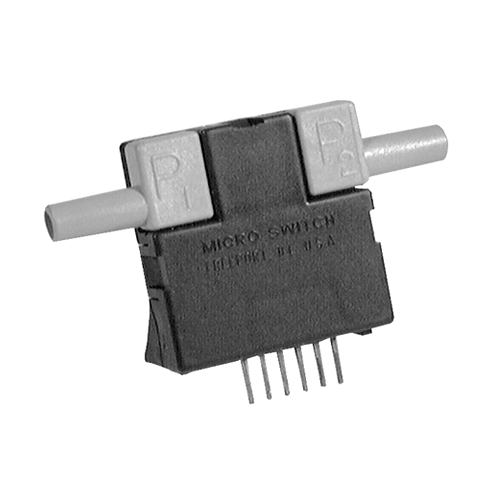

Microbridge Mass Airflow/Unamplified Sensors - AWM1000 Series
● Cost-effective microbridge technology
● Accurate, repeatable airflow sensing
● Bi-directional sensing capability
● Low differential pressure sensing
● Power Consumption (typ.): 30 mW
● Null Voltage: -1~1 mV
● Response Time: 1ms
● Operating Temperature Range: ?25° to +85°C (?13° to +185°F)
- Model Number: AWM1000 Series
- Data Sheet:
- Quantity:
- - +
Product Specification
Honeywell Airflow Sensors - AWM1000 Series Microbridge Mass Airflow/Unamplified
Take advantage of microbridge mass flow sensor technology. The AWM1000 series mass flow sensor provides all of the outstanding performance benefits of the standard AWM2000 series in a more cost-effective sensor platform. This device pro-vides accurate, repeatable flow sensing. Sensor to sensor interchangeability specifications are approximately twice as large as compared to the AWM2000 se-ries.
Honeywell Airflow Sensors - AWM1000 Series Features
● Cost-effective microbridge technology
● Accurate, repeatable airflow sensing
● Bi-directional sensing capability
● Low differential pressure sensing

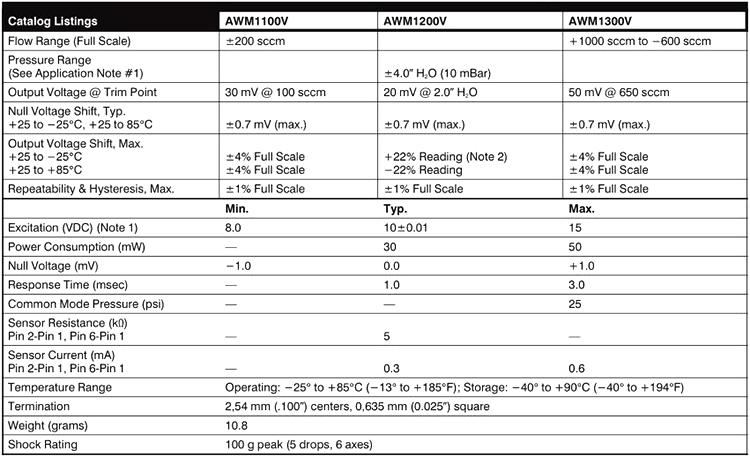

AWM1000 SERIES ORDER GUIDE (Performance Characteristics @ 10.0±0.01 VDC,25℃)
