Network Cable Tester - MS6810/MS6811

? Power Supply: 1 x 9V 6F22 Battery (MS6810)
? Power Supply: 1 x 6V 4LR44/4AG13 Battery (MS6811)
? Product Size: 153 x 74 x 31 mm (MS6810)
? Product Size: 125 x 55 x 30 mm (MS6811)
? Product Weight: 120g/0.26lb (MS6810)
? Product Weight: 106g/0.23lb (MS6811)
? Certificate: CE / ETL / RoHS

Model Number: MS6810/MS6811
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

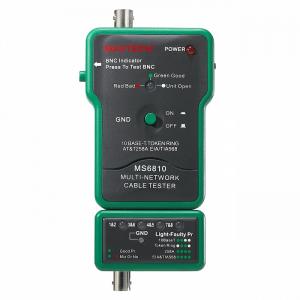

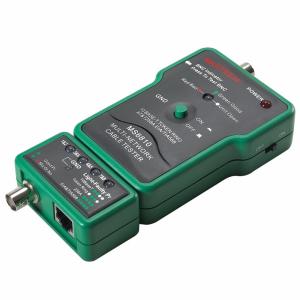

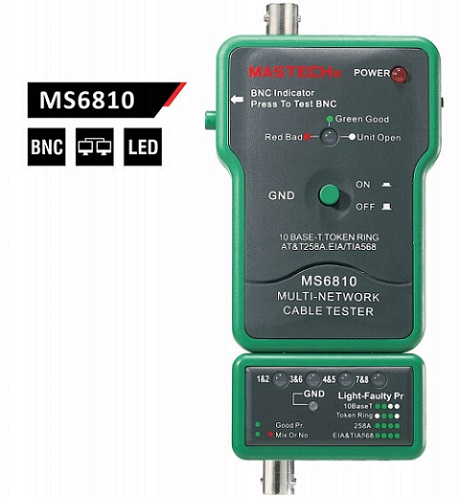

MS6810 - Network Cable Tester

The multi-network cable tester is widely used for Coaxial Cable (BNC), UTP and STP Cable. It can automatically check for open circuits, shorts, miswired, and reversals.

MS6810 Network Cable Tester General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 153 x 74 x 31 mm / 6.0" x 2.9" x 1.2"
? Product Weight: 120g/0.26lb
? Certificate: CE / ETL / RoHS

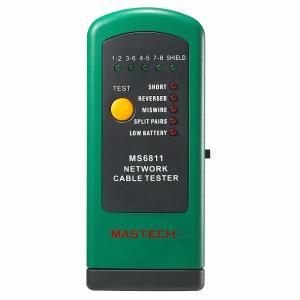

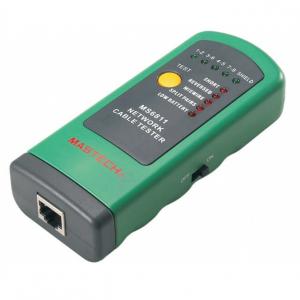

MS6811 - Network Cable Tester

The network cable tester is a small hand-held cable tester, which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cables.

MS6811 Network Cable Tester Features
? Test device used with UTP (Unshield Twisted Pair) and STP (Shield Twisted Pair) wiring.
? Checks continuity and configuration of wiring with unshielded and shielded modular plugs.
? Tests for open circuits, shorts, miswires, reversals, and split pairs.
? Main unit and one remote allow one person to test T568A, T568B, 10Base-T, and Token Ring.
? DEBUG quickly identifies which cable pairs have a specific wiring fault.
? Battery low indicator.

MS6811 Network Cable Tester General Specifications
? Power Supply: 1 x 6V 4LR44/4AG13 Battery
? Product Size: 125 x 55 x 30 mm / 4.9" x 2.2" x 1.2"
? Product Weight: 106g/0.23lb
? Certificate: CE / ETL / RoHS
