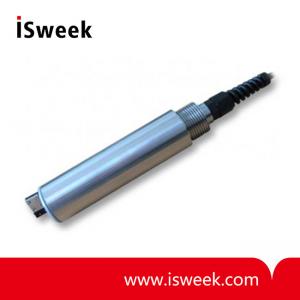

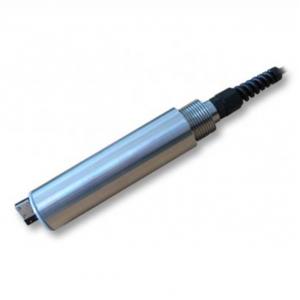

Online Self-cleaning Chlorophyll Sensor - Y514-A

? Range: 0~400ug/L(Chl) or 0~100RFU
? Housing IP Rating: IP68
? Deepest Depth: 10m underwater
? Resolution: 0.1ug/L Chl
? Temperature Range: 0 ~ 50℃
? Interface: Support RS-485, MODBUS protocols
? Power Requirements: DC 5~12V, current <50m

Model Number: Y514-A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Y514-A?Chlorophyll Sensor?Description
Chlorophyll sensor is developed for in-situ monitoring. It has integrated wiper system which can automatically clean the optical sensor surface. Its low maintenance and rugged design is especially good for long term deployment for river, lake, pond, and ocean monitoring.

Y514-A?Chlorophyll Sensor?Features
? 0~400ug/L Chl or 0~100RFU
? Accuracy 0.09ug/L Chl
? 0~50 ℃; IP68 rating, 10m underwater
? Fluorometric method
? RS-485; MODBUS protocol compatible
? One or two point user calibration
? With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world

Y514-A?Chlorophyll Sensor?Technical Parameters

Range	0~400ug/L(Chl) or 0~100RFU
Housing IP Rating	IP68
Deepest Depth	10m underwater
Resolution	0.1ug/L Chl
Temperature Range	0 ~ 50℃
Interface	Support RS-485, MODBUS protocols
User Calibration	one or two point
Power Requirements	DC 5~12V, current <50m
Sensor OD	33 mm
Sensor Length	156 mm
Cable Length	10m standard; 5m, 15m or30m optional
Body Materials	POM
