Product Specification

1 Product Description

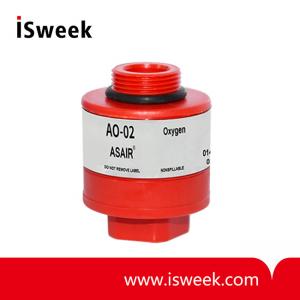

    The AO-02 oxygen sensor is designed to be for various instruments related to oxygen testing, such as motor vehicle exhaust gas detection equipment, exhaust gas environmental protection detection equipment and oxygen index testing equipment, etc. The use is limited to system monitoring. The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture. Please strictly follow the instructions for operating the oxygen analyzer and replacing the oxygen sensor.

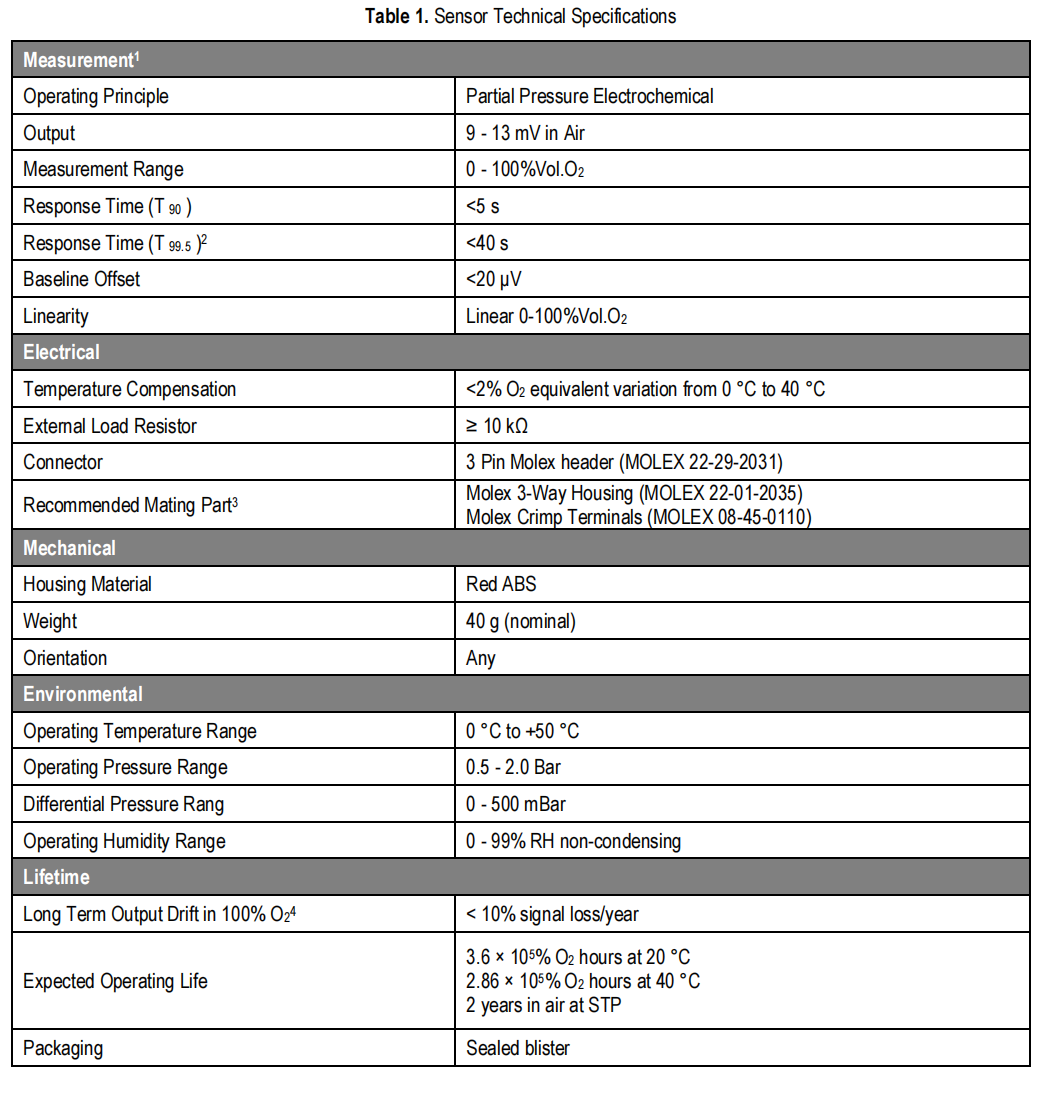

2 Technical Specifications

¹ Specifications are based on measurements made with cylinder gases using a flow rate of 100 mls/min and are valid at 20 °C, 50% RH and 1013 mBar, using recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months.

² T99.5 response is equivalent to a change in concentration from 20.9% O2 to 0.1% O2.

³ Only use recommended mating parts for connection. Welding will damage the sensor and void the warranty.

⁴ Output signal can drift below the lower limit over time.

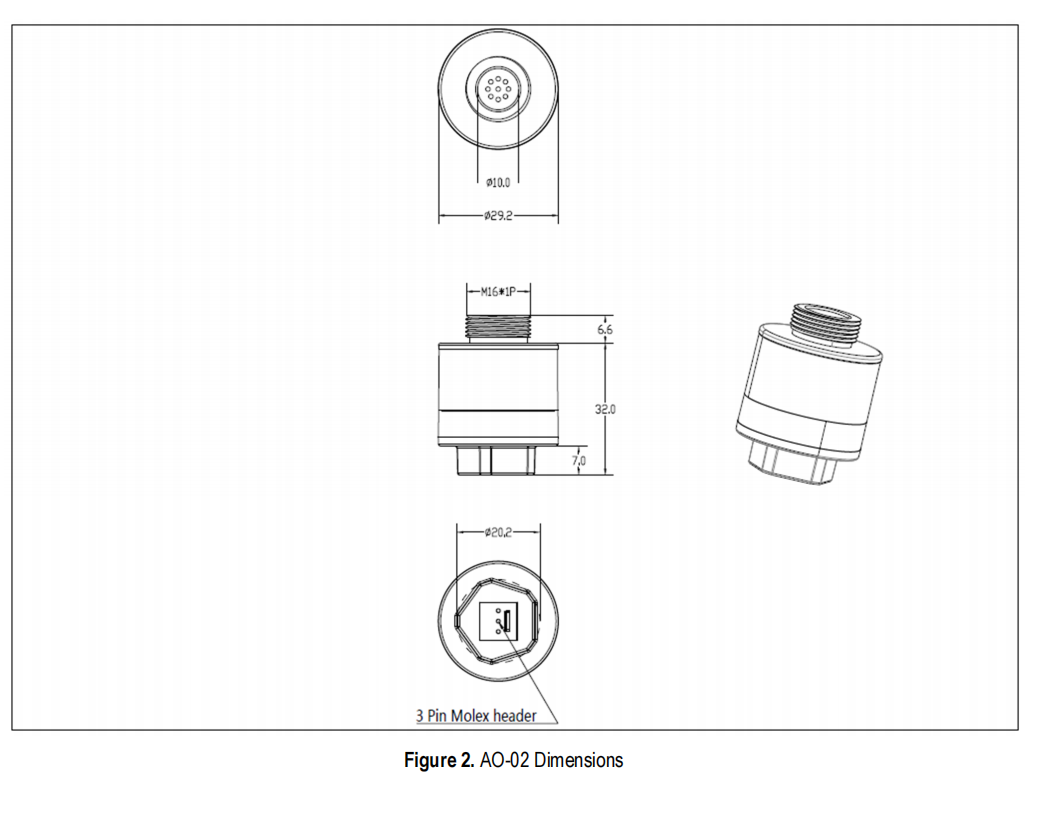

3 Product Dimensions（unit: mm）
