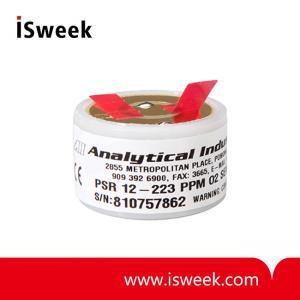

Oxygen Sensor - PSR-12-223

PSR-12-223 This advanced galvanic type oxygen sensor offers excellent stability and accuracy under stringent applications.

  • Model Number: PSR-12-223
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Oxygen Sensor
Mouse over image to zoom
Share:

Product Specification

    PSR-12-223 This advanced galvanic type oxygen sensor offers excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test. The widest range of oxygen sensors offered by Analytical Industries, Inc. are "Made in USA"



OEM Equipment:

AMI T1

GE Sensing Panametrics OX-1

Teledyne B-2/C/CAP/C-XL

Teledyne M-2

Teledyne S-2

Teledyne Z-2



Technical Specifications

Measuring Range

0-100%

Accuracy1

+/-2% of Full Scale

Signal Output2

295-625 uA

Linearity

+/-2% of Full Scale

Response T90

7 sec

Temp Coefficient

compensated

Operating Temp

0 to 45

Recommended Storage3

0 to 25

Temperature Coefficient

Compensated

Shelf Life4

6 months

Humidity Non-condensing

0-99% RH

Expected Life

18-24 months

Warranty5

12 months

Electrical Conn

2 Ring Gold Disk



Conditions:

Specification validated during design and in pursuit of improvement are subject to change without notice

1) At constant temperature and pressure.

2) In air (20.9% oxygen) at 25oC and 1 atm.

3) Sensor may be stored up to 55oC on an intermittent basis, for example, during transportation.

4) In original Package at 25oC and 1 atm.

5) Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyers negligence, misapplication, abuse or accident.
