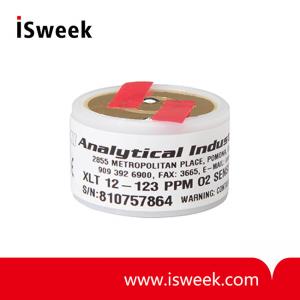

Oxygen Sensor-Replacement for A2C, OX2 and T2 - XLT-12-123

XLT-12-123, replaces A2C, OX2 & T2, This PPM oxygen sensor is galvanic type oxygen sensor with excellent stability and accuracy under stringent applications.

  • Model Number: XLT-12-123
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Oxygen Sensor-Replacement for A2C, OX2 and T2
Mouse over image to zoom
Share:

Product Specification

    XLT-12-123, replaces A2C, OX2 & T2, This PPM oxygen sensor is galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30" of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are "Made in USA"



***Recommended in gas mixtures with CO2 > 0.5%



OEM Equipment:

AMI T2 Sensor

GE Sensing Panametrics OX-2 Sensor

Teledyne A-2, A-2C Sensors



Technical Specifications

Measuring Range

0-25%

Accuracy1

+/-2% of Full Scale

Signal Output2

295-625 uA

Linearity

+/-2% of Full Scale

Response T90

7 sec

Temp Coefficient

un-compensated

Operating Temp

0 to 45

Recommended Storage3

0 to 25

Temperature Coefficient

Compensated

Shelf Life4

6 months

Humidity Non-condensing

0-99% RH

Expected Life

18-24 months

Warranty5

12 months

Electrical Conn

2 Ring Gold Disk



Conditions:

Specification validated during design and in pursuit of improvement are subject to change without notice

1) At constant temperature and pressure.

2) In air (20.9% oxygen) at 25and 1 atm.

3) Sensor may be stored up to 55℃ on an intermittent basis, for example, during transportation.

4) In original Package at 25and 1 atm.

5) Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyers negligence, misapplication, abuse or accident.
